FUTURELIGHT Set DMH-40 + Case

svg
svg
7 mm
FUTURELIGHT



FUTURELIGHT Set DMH-40 + Case

Item no. 09000006

Features

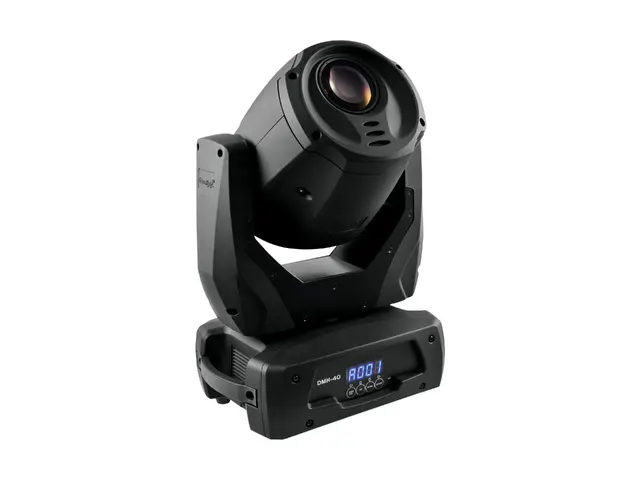

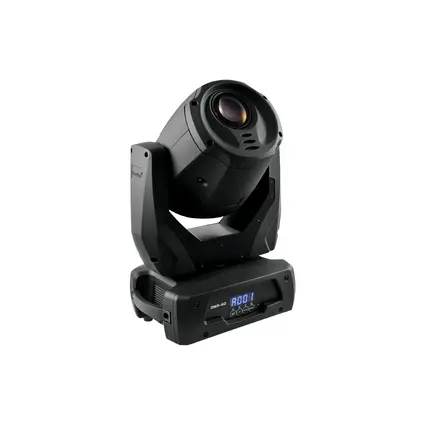

51841835 FUTURELIGHT DMH-40 LED Moving Head

High performance LED Moving Head

  • 1 extra bright 40 W LED for best luminance
  • Comparable to the light output of 250 W discharge lamp
  • Effect wheel with rotating 3-facet prism and 3D prism and frost filter
  • Macro function for rotating gobos/rotating prism combinations
  • Color wheel with 8 different dichroic color filters plus white
  • Switchable color change (mode 1: only full colors, mode 2: color change at every position)
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • RDMX (Remote DMX Addressing): DMX address setting via controller possible
  • Power standby mode
  • PAN angle switchable between 630° and 540°
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • Control board with 4-digit display and foil-keyboard for adjusting the DMX starting address, PAN/TILT Reverse, Program, Reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 56 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 7 built-in programs can be called up via DMX controller
  • Software upload by optional FUTURELIGHT ULB-1 upload box via DMX link
  • Sound-controlled via built-in microphone
  • DMX control via every standard DMX controller
  • Control: Sound to light via Microphone

51836890 ROADINGER Flightcase 2x DMH-30/DMH-40

PRO flightcase for 2 x FUTURELIGHT DMH-60/DMH-40/DMH-30 LED Moving Head

  • Developed for 51841836 FUTURELIGHT DMH-60 LED Moving Head, 51841835 FUTURELIGHT DMH-40 LED Moving Head, 51841825 FUTURELIGHT DMH-30 LED Moving Head or comparable Moving Heads
  • Suitable for 2 units
  • Interior and cover upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chromium plated)
  • 4 castors, 2 of which with locking brakes
  • 2 high-quality butterfly locks
  • 2 high-quality plated case handles
  • For perfect protection
  • Transport aid: With wheels
Technical specifications
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51841835 FUTURELIGHT DMH-40 LED Moving Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:150 W
Beam angle:15°
Flash rate:1 - 22 Hz
Gobos:outside diameter 27mm
image diameter 22mm
DMX channels:14
Control:Sound to light via Microphone
Color:Black
Length:301 mm
Weight:11,30 kg
DMX channels:14
DMX connection:5-pin and 3-pin XLR
Sound-control:via built-in microphone
Flash-rate:22 Hz
LED type:LUMINUS SST-90
LED number:1
Beam angle:15°
Color-wheel:8 dichroic filters plus open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:27 mm
Image diameter of the gobos:22 mm
Length of base:301 mm
Width of yoke:247 mm
Height (head horizontal):406 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51836890 ROADINGER Flightcase 2x DMH-30/DMH-40
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:72,5 cm
Height:68 cm
Depth:40 cm
Weight:18,80 kg
Strength:7 mm
Outside dimensions (W x D x H):725 x 400 x 680 mm
Inside dimensions (W x D x H):685 x 360 x 460 mm
