Technical specifications

Voltage (lamps):	240 V, AC
Nominal wattage:	600 W
Base:	G-9.5
Lamp type:	Halogen lamp; clear lamp; high voltage lamp; halogen bulb
Lamp specification:	Dimmable Hot restrike
Beam angle:	310°
Color of light:	White
Color temperature:	3000K
Color rendering index (CRI):	100 Ra
Lead time:	0 s
Construction:	Bi pin
Operating temperature max.:	40° C
Operating temperature min.:	10° C
Burning position:	S180 (universal)
Lamp life:	1500 h
Luminous flux:	11000 lm
Dimensions (LxD):	105x18 mm
Weight:	0.03 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	0043168884457	0,04 kg	12,3cm x 4,2cm x 4,2cm
24	10043168884454	1,15 kg	25,5cm x 17,5cm x 13,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Data sheet

Name	Version	Language
88323002-Datasheet-58327-1.0000-de_en.pdf (144 KB)	1.0000	de_en
88323002-Datasheet-94786-1.1000-en.pdf (158 KB)	1.1000	en
88323002-Datasheet-103258-GE-Gesamtsortiment-Halogenlampen-de_en.pdf (5 MB)	0.0000	de_en

All images

Name	Version	Language
88323002-Images-.zip

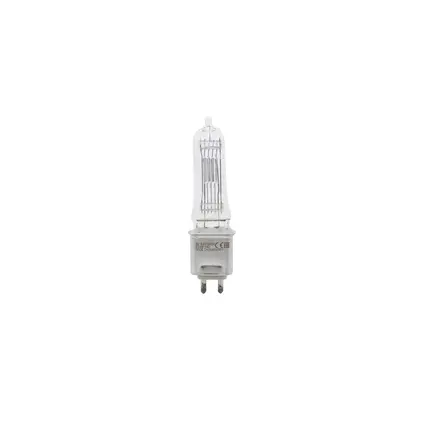

GE GKV LL 240V/600W G-9.5 3000K

The article is no longer in our assortment.

No. 88323002

310°

Dimmable
Hot restrike
Very high color rendering index (CRI)
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"
