Technical specifications

Power supply:	5V DC 2000 mA
Connections:	Signal via 1 x USB B (F) mounting version Signal via 2 x RJ-45 (F) mounting version Signal via 1 x DVI
PC connect:	Via RJ-45 (F) mounting version
Dimensions:	Width: 16 cm Depth: 13 cm Height: 4.8 cm
Weight:	0.24 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397673203	0,34 kg	24cm x 15cm x 6cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
80503130-Support-54529-1.0000-Presets-Pixel-Mesh-de.rcg (81 KB)	1.0000	de
80503130-Support-61373-10.000-Software-LED-Studio-V10-en.zip (15 MB)	10.000	en

Data sheet

All images

Name	Version	Language
80503130-Images-.zip

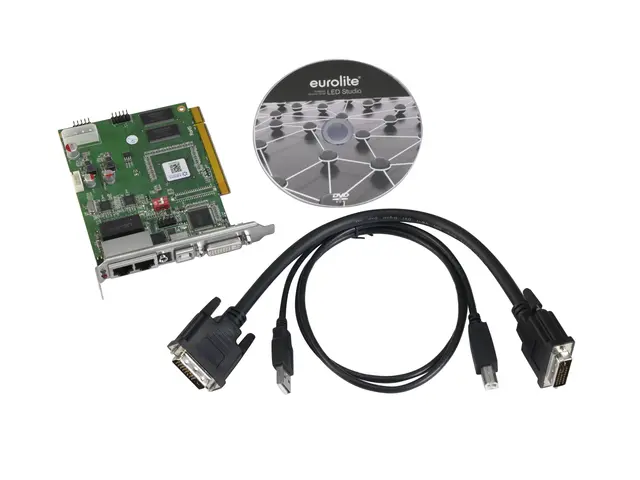

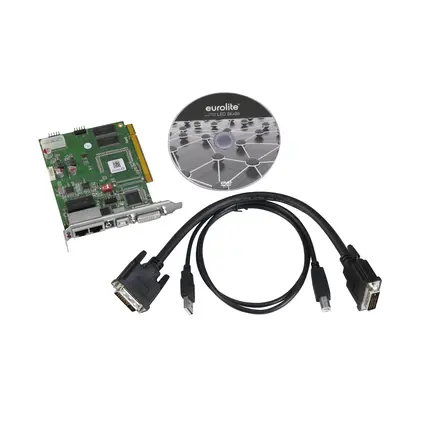

EUROLITE PCI sending card and software

The article is no longer in our assortment.

No. 80503130

Network control system LED Studio for LED displays

Network control system consisting of PCI sending card and media software LED Studio for controlling LED displays with a computer
2 x 2-gigabit ethernet outputs, USB port, DVI port
LED Pixel Mesh: operation with interface (scanning box) 80503120
Supported formats: 640 x 480 / 800 x 600 / 1024 x 768 pixels
The device can be connected via RJ-45 (F) mounting version to the PC
For application areas such as: Advertisement/Shop window; installation; stage
For further information about this product, please refer to the Data Sheet under "Downloads"
