Technical specifications
Power supply:
100-240 V AC, 50/60 Hz
Or
5V DC 500 mA
Power consumption:
4 W
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Mains input via USB C (W) mounting version power supply cord for USB A mains connection (optional)
Power output:
1 x P-Con (gray), mounting version
DMX channels:
Input 1024
DMX input:
2 x 3-pin XLR (M) mounting version
DMX output:
2 x 3-pin XLR (F) mounting version
Network connection:
1x RJ-45 (F) mounting version
Control:
DMX; Aurora DMX App; Photon App; Art-NetDmxRemote App
Display type:
LCD display
USB port:
USB 2.0, type B
PC connect:
Via USB
Dimensions:
Width: 22.7 cm
Depth: 13 cm
Height: 7 cm
Weight:
1.13 kg
Packaging units
PU
EAN
Weight
Dimensions
1
4026397648362
1,41 kg
27cm x 24cm x 10cm
10
4026397648379
14,80 kg
53cm x 41cm x 28cm
Spare parts
FUTURELIGHT Fader B103 10KB 60mm CP-256
PCB (Control) DMX AIO Recorder (63300AP178-170627)
Fader button grey Mark black DMX AIO Recorder

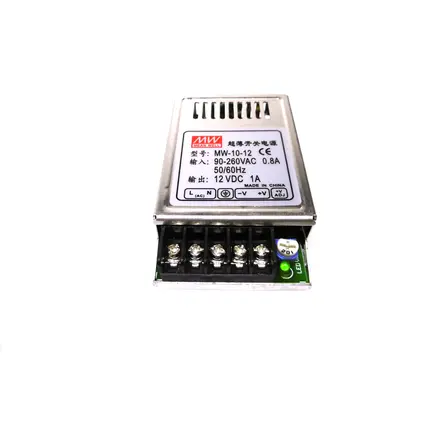

Pcb (Power supply) 12V/1A DMX AIO Recorder (MW-10-12)
PCB (WIFI) DMX AIO Recorder (UART WIFI MODULE)
Antenna freeDMX AP 2,4GHz (SMA plug)
IC XL1509 DC-DC Converters SOP-8
IC DK124 DIP-8 (AC-DC SWITCH MODE POWER CONTROLLER)
Downloads
Spezifications
Name
Version
Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
Software
Name
Version
Language
70064835-SW-121230-1.0000-SD-Card-Data-en.zip (10 MB)
1.0000
en
70064835-SW-130066-1.7000-Firmware-V17-en.zip (45 KB)
1.7000
en
All images
Name
Version
Language
70064835-Images-.zip
...
Lighting
/
Light control
/
DMX controllers
EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
Double tap or pinch to zoom
Hover to zoom
Bildergalerie öffnen
Detail images (7 overall)
EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
The article is no longer in our assortment.
No. 70064835
DMX recorder for 2 universes
Wireless DMX recorder and Art-Net node
Real-time recording and playback of light shows via DMX or Wi-Fi
Records any Art-Net and DMX source
Built-in access point
Art-Net in/out via Wi-Fi or LAN
8 memory locations with up to 20 hours recording capacity each
2 recording modes: time recording or step-by-step recording
2 playback modes: solo run or loop run
Dimmer and speed fader
DMX merger (2 in > 1 out) with HTP, LTP, override and backup modes
DMX splitter (1 in > 2 out)
Rugged black metal housing
Can receive and process up to 1024 DMX channels
Control via DMX; Aurora DMX App; Photon App; Art-NetDmxRemote App
LCD display
The device can be connected via USB to the PC
Technical specifications
Spare parts
User manual
Downloads
Manufacturer information
Scope of delivery
Accessories
