Telescopic arm 115-195 cm
GUIL TTL-02 Telescopic Arm 1150-1950mm

GUIL

Telescopic arm 115-195 cm

GUIL TTL-02 Telescopic Arm 1150-1950mm

Stock for approx. 12 wk(s)
103,90
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 60320382

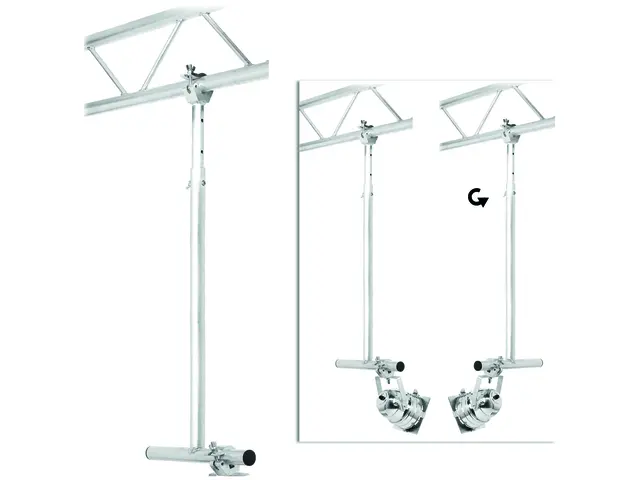

Features
  • T-shape, boom arm, Ø made of aluminium 50 mm by 2,5 mm thick
  • An aluminium injected, heavy-duty clamp (ABZ-24) is welded to the boom arm
  • Suitable for tubes with an external diameter that goes from 48 to 51 mm
  • Multi-purpose extendable boom arm
  • It can be fixed in nine different positions with a safety bolt (1150 mm - 1250 mm - 1350 mm - 1450 mm - 1550 mm - 1650 mm - 1750 mm 1850 mm - 1950 mm)
  • Made in Europe
  • Trusspipe diameter: 50 mm
Technical specifications
Maximum load:100 kg
Adjustable:Yes
For diameters of:48-51 mm
Main tubes:Ø 50 x 2,5 mm
Insertion tube size:Ø 45 x 2 mm
Material:Polished Aluminum
Alloy:EN-AW 6082 T6
Dimensions:1130 x 500 x 50 mm
Color:Alu colored
Max. lifting capacity:100 kg
Packaging units
PU EAN Weight Dimensions
1 4026397481464 3,05 kg 118cm x 6cm x 50,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00097745.pdf 25.00 de
00098479.pdf 25.00 en
00115407.pdf 27.00 de
00115844.pdf 27.00 en
