2-point truss system

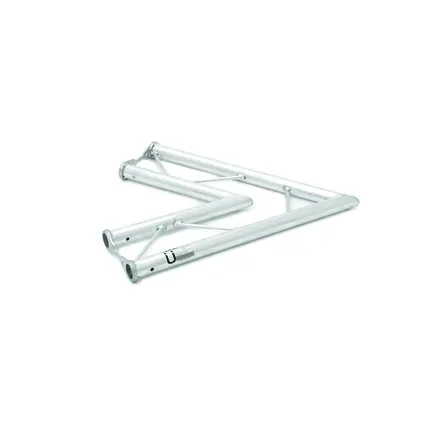

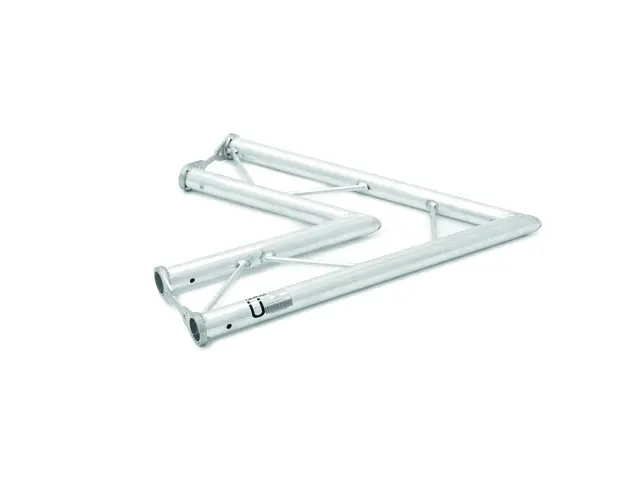

ALUTRUSS BISYSTEM PH-20 2-way 60° horizontal

svg
ALUTRUSS

2-point truss system

ALUTRUSS BISYSTEM PH-20 2-way 60° horizontal

only a few items available
74,90
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 60300700
BISYSTEM 2-point truss system
BISYSTEM is a 2-point truss system made of aluminum. The individual elements are connected via two tube fasteners and two M10 bolts and nuts.

The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 12 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 238 mm outer dimensions, BISYSTEM is a relatively compact truss system for higher loads. BISYSTEM is mainly designed for permanent installations in shops, discotheques and theatres.

By using the optional rapid snap connectors, this system can also be used for fair installations and event installations.

Altogether a universal truss system impressing with its wide range of standard system lengths, corners and accessory.
Features

2-point truss system

  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Direction Horizontal
  • Trusspipe: 50 mm
  • Made in Europe
Technical specifications
Trusspipe:50 mm x 2 mm
Welding technique:TIG-welding
Welding material:AlMg 5
Alloy:AlMgSi 0.5
Color:Alu colored
Strut diameter x thickness:12 x 2mm
Weight:2,4 kg
Packaging units
PU EAN Weight Dimensions
1 4026397105988 2,90 kg 82,5cm x 82cm x 7cm
