Heavy-duty power distributor with CEE input

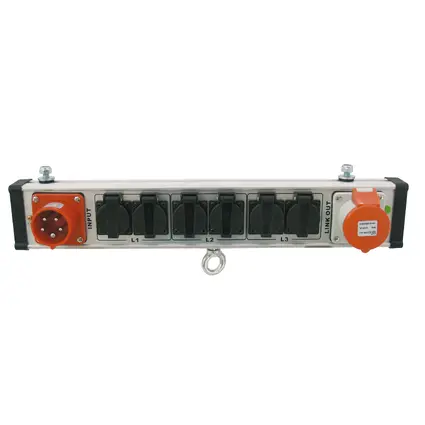

EUROLITE SAB-16XS Power split box

EUROLITE

Heavy-duty power distributor with CEE input

EUROLITE SAB-16XS Power split box

Almost indestructible: Even if these power split boxes fell down a trussing of four metres height, they would still work and not be damaged.
Absolute multifunctional: this series is featured with all inputs and outputs one can think of. So it is best prepared for really all kinds of use in the field of professional stage design.
Features

Heavy-duty power distributor with CEE input

  • 1 x 5-pin 16 A CEE input
  • 1 x 5-pin 16 A CEE output
  • With 6 flap safety plugs
  • Incl. two safety eyelets
  • Robust aluminum profile housing
Technical specifications
Dimensions:Width: 47 cm
Depth: 12 cm
Height: 15 cm
Weight:2 kg
Power supply:380 V AC, 50 Hz
Max. power:11040 W
Max. power/channel3680 W
Max. current/channel:16 A
Dimensions (L x W x H):570 x 150 x 120 mm
Packaging units
PU EAN Weight Dimensions
1 4026397335927 2,30 kg 62cm x 19cm x 17cm
4 4026397335934 10,20 kg 64cm x 40cm x 39cm
Support
Spare parts
No spare parts available.
