Rugged truss lifter for medium weights
EUROLITE STC-480/150 Truss Lifter TÜV/GS

EUROLITE

Rugged truss lifter for medium weights

EUROLITE STC-480/150 Truss Lifter TÜV/GS

Stock for approx. 12 wk(s)
999,00
add to cart
This is a bulky product.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 59007055

The EUROLITE STC-series are truss lifters manufactured under strict TUV monitoring. These lifts boast of high quality, exraordinary ruggedness, highest versatility and high stability. The production is monitored by the German TÜV SÜD which means that they comply with the highest safety standards.

The GS mark signals to the buyer, customer, or consumer that the chosen product as well as the user manual and production (process) have been tested by an authorized institution such as TÜV SÜD, with priority being given to aspects of safety. In the meantime, the German GS-mark has been recognized as one of the crucial marks within product safety.
Features

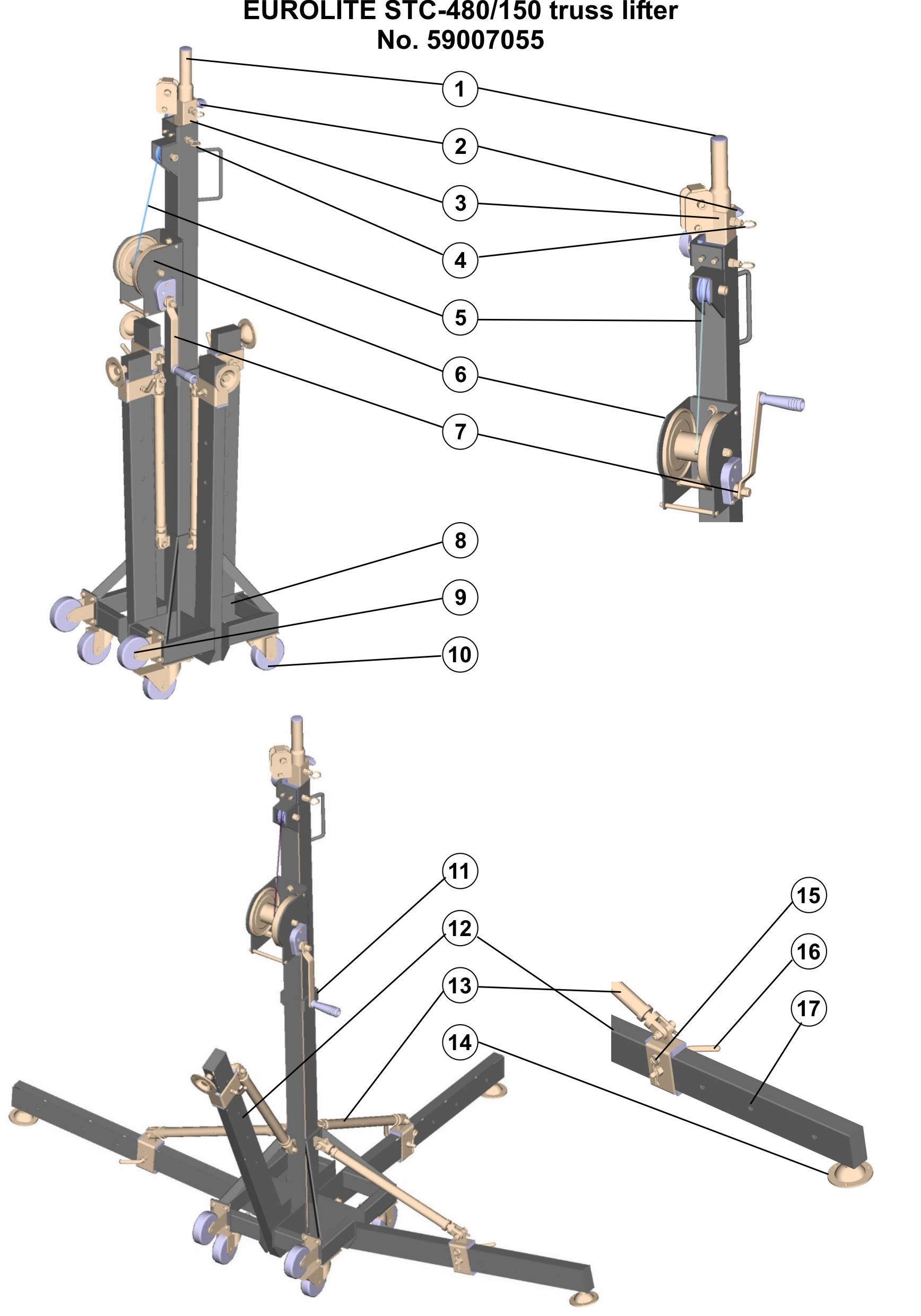

  • Three-part telescopic lifter with galvanized steel sections
  • TÜV/GS certified, certificate available
  • CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
  • 1-gear winch for easy lifting of the loads
  • 5 mm steel rope
  • Automatic braking system
  • Safety-pins for mechanic locking
  • Third safety device via massive block locking
  • Four massive outriggers for highest stability
  • Outriggers are firmly connected with the base, the finishing is velcro-protected
  • Uneven grounds can be compensated via individually adjustable levelling braces
  • Four auto-levelling, galvanized foot plates
  • Truss lifter can be fixed via holes in the foot plates
  • Easy transport via 100 mm swivel castors
  • 4 swivel castors for vertical transport, 2 with brake
  • 2 additional castors for horizontal transport
  • Powder-coated base and galvanized sections for highest corrosion protection
Technical specifications
Type:Telescopic truss lifter
Construction:DIN 15560-27, DIN EN ISO 12100-2
Certified by:CE, TÜV/GS
Sections:3 (70/50/44 mm)
Maximum load:150 kg
Maximum height:4.80 m
Minimum height:1.95 m
Material:2 mm steel
Steel rope:5 mm
Adapter:D = 35 mm
Base area:D = 2.13 m
Transport dimensions:1.95 x 0.55 x 0.42 m
Minimum load:25 kg
Max. Height:4.80 m
Min. height:1.95 m
Weight:63 kg
Adapter:35 mm
Transport dimensions:1,95 x 0,55 x 0,42 m
Base area:D= 2.13 m
Steel rope:5 mm
Maximum carrying capacity:150 kg
Packaging units
PU EAN Weight Dimensions
1 4026397277920 76,45 kg 200cm x 47cm x 55cm
