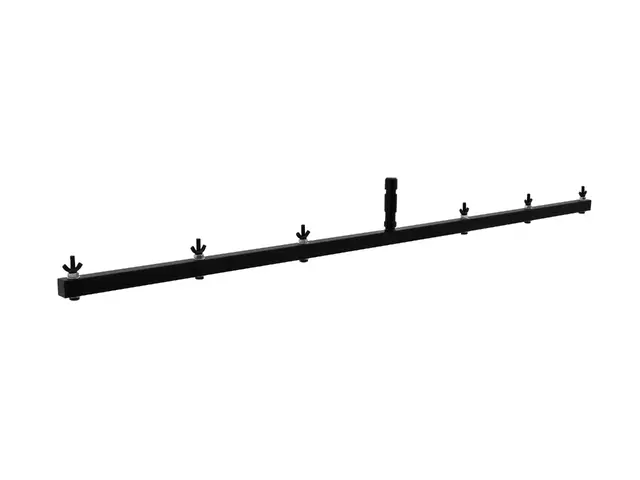

Crossbeam with TV-pin for 6 spots
EUROLITE Cross Beam Q2 with Pin

EUROLITE

Crossbeam with TV-pin for 6 spots

EUROLITE Cross Beam Q2 with Pin

Item no. 59007028

Features
  • For 6 spots
  • Diameter TV-pin: 28 mm
  • Crossbeam dimensions: 1500 x 30 x 30 mm
  • 6 x screw M10x 70 mm included in the delivery
Technical specifications
Maximum load WLL (4-fold):30 kg
Maximum load BGV C1 (8-fold):15 kg
Maximum load WLL fixat. point:5 kg
Maximum load BGV C1 fixat. point:2.5 kg
Spigot:D = 28 mm
Dimensions (W x D x H):1500 x 30 x 30 mm
Weight:2.5 kg
Max. load WLL (4fold):30 kg
Packaging units
PU EAN Weight Dimensions
1 4026397331646 2,95 kg 152cm x 16cm x 5cm
10 4026397438901 30,30 kg 155cm x 28,5cm x 35cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00097669.pdf 25.00 de
00098410.pdf 25.00 en
00115341.pdf 27.00 de
00115778.pdf 27.00 en
All images
Name Version Language
59007028.zip
