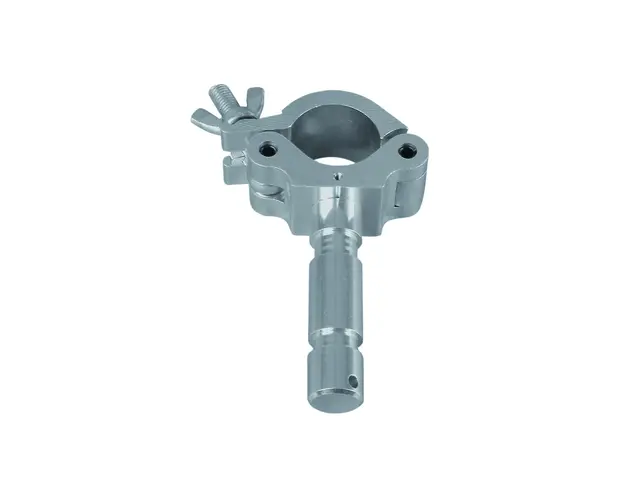

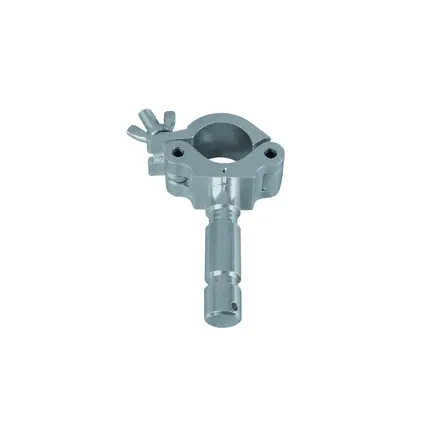

Mounting coupler with TV pin for 50 mm tube, maximum load WLL 1000 kg
EUROLITE TPC-52 Coupler with Spigot

EUROLITE

Mounting coupler with TV pin for 50 mm tube, maximum load WLL 1000 kg

EUROLITE TPC-52 Coupler with Spigot

Stock for approx. 12 wk(s)
29,50
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 59006810

Features
  • Truss adapter for truss systems up to 50 mm diameter
  • Width 50 mm
  • Diameter TV-pin: 28 mm
  • Maximum load with STC-310: 80 kg
Technical specifications
Maximum load BGV C1 (8-fold):500 kg
Maximum load BGV C1 (10-fold):400 kg
Maximum load BGV C1 (12-fold):330 kg
Spigot:D = 28 mm
Dimensions (L x W x H):200 x 130 x 60 mm
Color:Silver
Max. load WLL (4fold):1000 kg
Maximum load BGV C1 (8-fold):500 kg
Weight:0.9 kg
Maximum load BGV C1 (10-fold):400 kg
Maximum load BGV C1 (12-fold):330 kg
Packaging units
PU EAN Weight Dimensions
1 4026397119657 0,91 kg 20cm x 12,7cm x 6cm
16 4026397120240 15,00 kg 51cm x 26,5cm x 22cm
