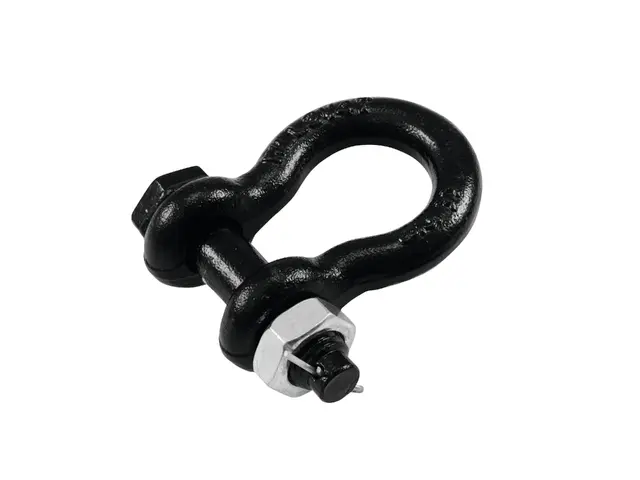

Bow shackle, maximum load WLL 3250 kg
EUROLITE Shackle 16mm black

Bow shackle, maximum load WLL 3250 kg-MainBild
download image
Detail images (2 overall)
1
2
svg
1,80 cm
EUROLITE

Bow shackle, maximum load WLL 3250 kg

EUROLITE Shackle 16mm black

The article is no longer in our assortment.
No. 58011061
Print product
Product badge
Features

Bow shackle, maximum load WLL 3250 kg

  • Nominal size: 16 mm
  • 18 mm screw bolt (X-type) with hexagon head, hexagon nut and safety pin
  • Complies with DIN EN 13889:2009-02
  • LGA tested
Technical specifications
Maximum load WLL (5-fold):3250 kg
Standard:DIN EN 13889:2009-02,
Color:Black
Temperature range:-20° C - +200° C
Dimensions:Length: 10,70 cm
Width: 9,50 cm
Height: 3,80 cm
Diameter: Ø 1,80 cm
Weight:0,68 kg
Packaging units
PUEANWeightDimensions
140263975993670,68 kg10,5cm x 9cm x 4cm
50402639759937434,50 kg37cm x 35cm x 16cm
Support
Spare parts
No spare parts available.
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
