Installation rope, safety bond, safety

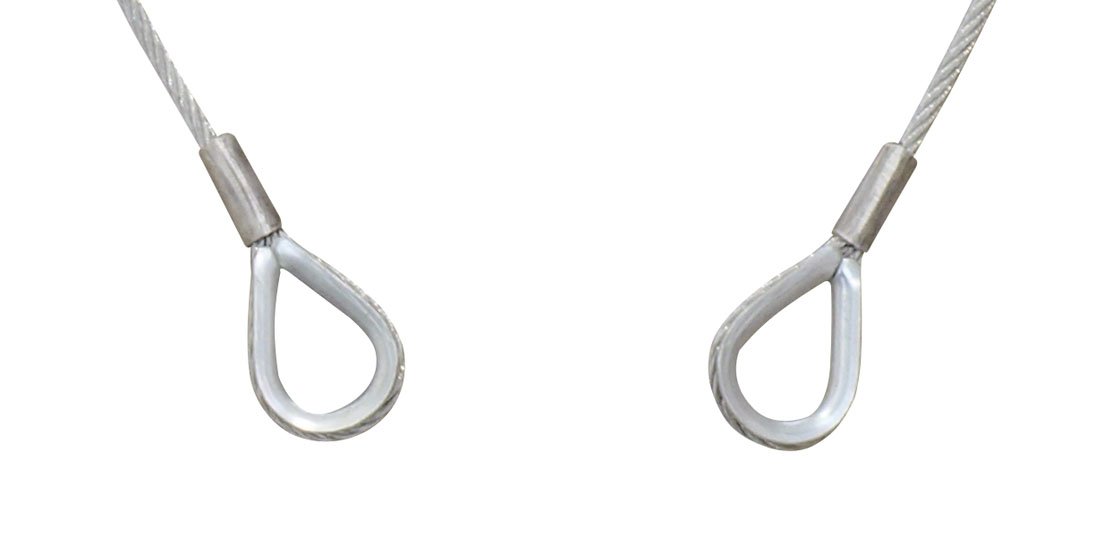

EUROLITE Steel Rope 600x3mm silver with Thimbles

EUROLITE

Installation rope, safety bond, safety

EUROLITE Steel Rope 600x3mm silver with Thimbles

available in approx. 7 wk(s)
2,90
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 5801048F

EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3:2007-03. According to this table, the maximum load of this rope is 40 kg (single-stranded).
Use as safety bond
The correct safety bond must be selected only by table 9 of BGI 810-3:2007-03. According to this table, the maximum load of this safety bond is 5 kg.
Features
  • Round strand rope 6 x 19 with fibre core
  • With two thimbles
  • Suitable for installing and securing loads above persons
  • 3 x 600 mm
  • WLL 100 kg
  • Test report according to DIN EN 10204 as download
Technical specifications
Maximum load WLL (5-fold):100 kg
Maximum load BGV C1 (12-fold):40 kg
Maximum load (safety):5 kg
Temperature range:-40° C to +100° C
Rope length:0.6 m
Rope diameter:3.00 mm
Rope type:Round strand rope
Nominal tensile strength:1770 N/mm²
Strength classification:1960
Maximum load WLL (5-fold):100 kg
Color:Silver
Nominal tensile strenght:1770 N/mm²
Design of the core:6 x 19 FC
Strength classification:1960
Wire surface:Zinc-plated
Length:60 cm
Maximum load BGV C1 (12-fold):40 kg
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth:0.0311 kg/m
Packaging units
PU EAN Weight Dimensions
1 4026397376074 0,04 kg 9cm x 7,5cm x 0,5cm
100 4026397376494 3,60 kg 33cm x 25cm x 10,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Illustration
Name Version Language
Thimbles
0.00 de/en
Catalog pages
Name Version Language
00097660.pdf 25.00 de
00098402.pdf 25.00 en
00115333.pdf 27.00 de
00115770.pdf 27.00 en
Data sheet
Name Version Language
Evaluation/Comment00044003.pdf 1.20 de/en
1960
Test report00046986.pdf
1.30 en/de
Press report
All images
Name Version Language
5801048F.zip
