High-quality safety rope in accordance with DIN EN 10204
EUROLITE Safety Bond AG-5 3x600mm up to 5kg sil

EUROLITE

High-quality safety rope in accordance with DIN EN 10204

EUROLITE Safety Bond AG-5 3x600mm up to 5kg sil

Stock for approx. 8 wk(s)
6,50
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 58010360

EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.
Features
  • Suitable for securing loads above persons
  • Round strand rope 6 x 19 with fibre core

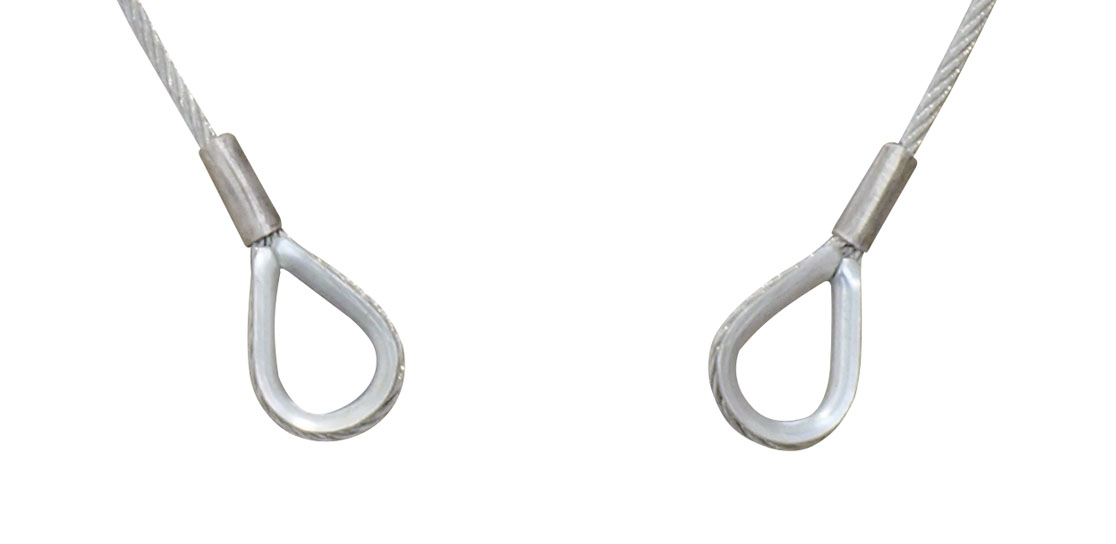

  • With two thimbles
  • 4 mm quick link (form A) included
  • Test report according to DIN EN 10204 as download
Technical specifications
Temperature range:-40° C to +100° C
Rope length:0.60 m
Rope diameter:3.00 mm
Rope type:Round strand rope
Nominal tensile strength:1770 N/mm²
Strength classification:1770
Secured weight (BGV C1):max. 5 kg
Maximum load WLL (5-fold):100 kg
Color:Silver
Nominal tensile strenght:1770 N/mm²
Design of the core:6 x 19 FC
Strength classification:1770
Wire surface:Zinc-plated
Length:60 cm
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth:0.0311 kg/m
Packaging units
PU EAN Weight Dimensions
1 4026397491296 0,05 kg 65cm x 2cm x 0,5cm
