Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	180.00 W
IP classification:	IP20
Control:	DMX
Fixtures available for:	Light´J; LED PC-Control 512
Dimensions:	Length: 44.5 cm Depth: 13 cm Height: 16.5 cm
Weight:	3.2 kg
Beam angle:	21°
LED number:	8
LED type:	8 W QCL
DMX channels:	4/6/7/11/19/32/35
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
Dimensions (L x W x H):	445 x 130 x 165 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397430318	3,50 kg	48,5cm x 24,5cm x 15,5cm
4	4026397430325	15,50 kg	51,5cm x 51,5cm x 33,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51930413-Support-62814-1.0000-For-LED-control-en.rar (5 KB)	1.0000	en
51930413-Support-64030-1.0000-For-DMX-Wizard-software-de.dsp (5 KB)	1.0000	de
51930413-Support-105974-1.0000-51930413-LED-PC-Control-fixtures-de.zip (843 B)	1.0000	de

Illustration

Name	Version	Language
51930413-Illustration-70372-de.pdf (138 KB)	0.0000	de

Video file

Name	Version	Language
51930413-Video-63028-de_en_es_fr.flv (14 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51930413-Images-.zip

Video link

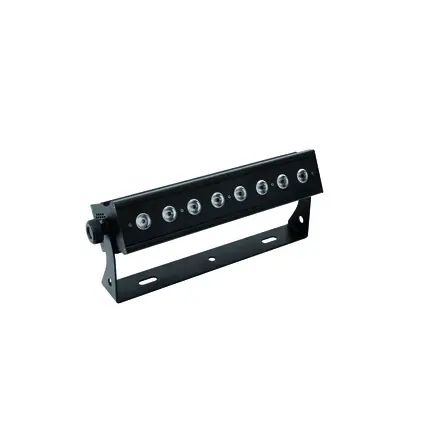

EUROLITE LED PIX-8 QCL Bar

The article is no longer in our assortment.

No. 51930413

Compact LED color changing bar with 8 x 8 W 4in1 LED

Equipped with eight QCL LEDs in the colors red, green, blue and white
Particularly bright illuminating power of the LEDs
4, 6, 7, 11, 19, 32, 35 DMX channels selectable for various applications
Each LED can be controlled individually
Programmable color change speed, strobe effect and dimmer
Strobe effect with 1-18 flashes per second
RGBW color mixing
Static colors
Internal programs
DMX-controlled operation or stand-alone operation with Master/Slave function
Manual, sound or DMX-controlled operation
For large stage backgrounds in public places, main halls and lounges
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
Sound-controlled via built-in microphone
Addressing via control panel with LCD screen
Ready for connection with power-cable and plug
Feed-through output allows to power another device
After every 8 devices the fixtures must have a renewed connection with the power mains
DMX512 control possible via any commercial DMX controller
Control via DMX
Fixtures available for Light´J; LED PC-Control 512
