Light effect bar with RGBA/CW/WW+UV LEDs and pixel control

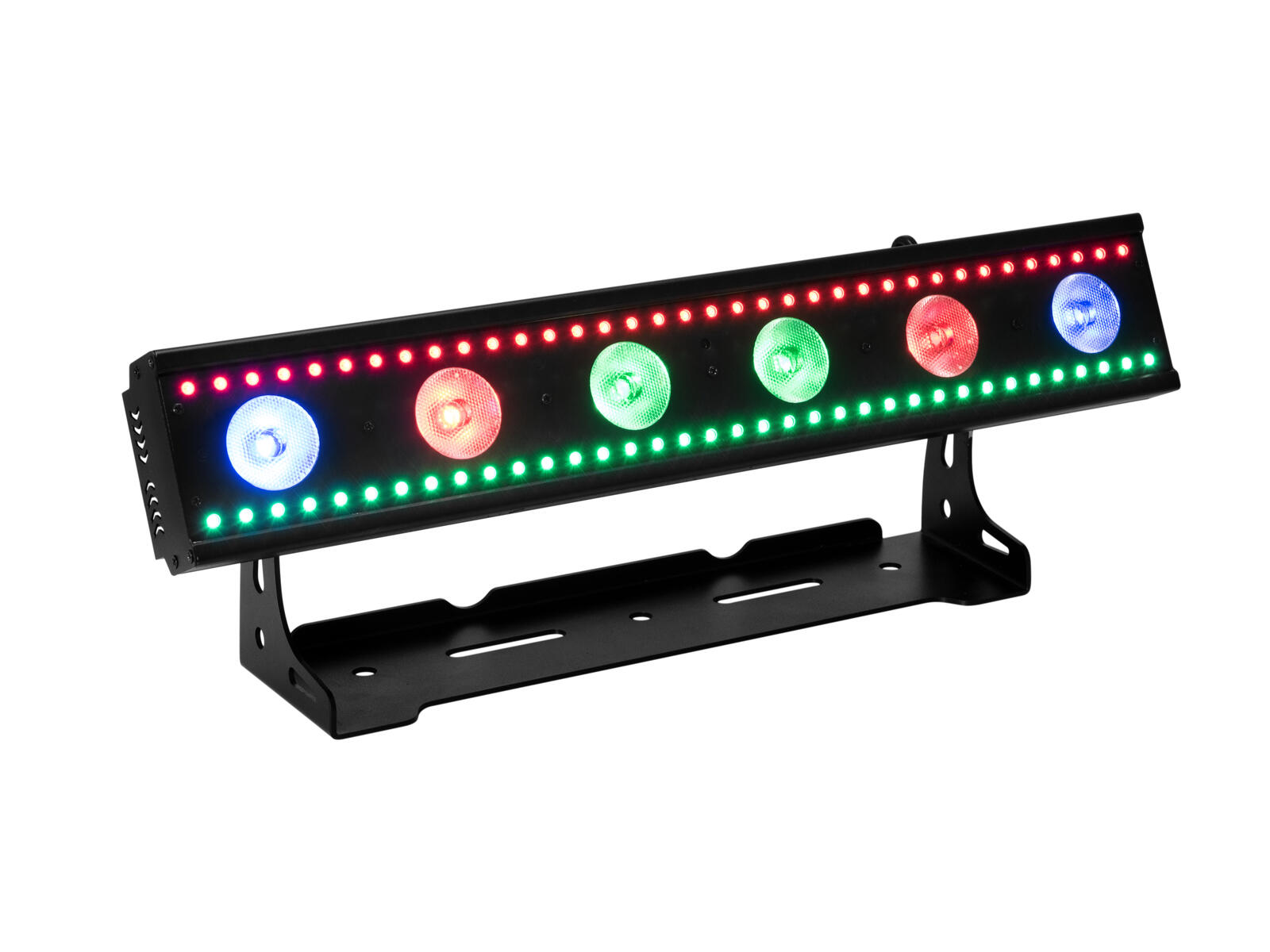

EUROLITE LED PIX-7 Hybrid SCL Bar

Name: EUROLITE LED PIX-7 Hybrid SCL Bar
Brand: EUROLITE

18°

Stock for approx. 12 wk(s)

249,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Light effect bar with RGBA/CW/WW+UV LEDs and pixel control

6 high-power 9 W RGBA/CW/WW+UV LEDs (7in1) for wash light and blacklight effects
72 additional 0.5 W RGB LEDs for dynamic chase and strobe effects
Auto, music, master/slave and DMX mode
Built-in auto and music show programs
Direct color selection for 27 preset colors
3, 7, 9, 22 or 43 DMX channels selectable for numerous applications
Each 7in1 LED can be controlled individually
Color temperature adjustable in 6 steps 2700-8000 K
Sound-control via built-in microphone with adjustable microphone sensitivity
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Addressing and setting via control panel with 4-digit LED display
Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Swivel mounting bracket
Feed-through output allows to power up to 8 devices
Power connection via P-Con jack and included power cable with safety plug
LED: 72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix)
LED: 6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Control: QuickDMX viaUSB (optional); IR remote control included; Stand-alone; Sound to light viaMicrophone; DMX
Projection: flicker-free
Effect: Strobe effect; UV

Remote control

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
LED:	72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix)
	6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	3; 7; 9; 22; 43
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Cooling fan:	No, cooling by convection
Control:	QuickDMX via USB (optional)
	IR remote control included
	Stand-alone
	Sound to light via Microphone
	DMX
Beam angle:	18°
Case color:	Black
Length:	50 cm
Height:	14,9 cm
Depth:	10 cm
Weight:	3,95 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
LEDs:
Wash effect:	6 x 9 W RGBA/CW/WW+UV (7in1)
Strobe effect:	72 x 0.5 W RGB (SMD)
DMX512 connection:	3-pin XLR
QuickDMX connection:	USB, type A
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397643664	4,45 kg	54cm x 16cm x 23,5cm
4	4026397643756	18,50 kg	56cm x 34cm x 49cm
