LED bar (100cm) with 12 x 10 watt 6in1 HCL RGBWA/UV LED

EUROLITE LED PIX-12 HCL Bar

The article is no longer in our assortment.

No. 51930406

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED PIX-12 HCL Bar

Light bar (100 cm) with 12 x 10 W 6in1 LED (RGBAW+UV), pixel control

The EUROLITE LED PIX-12 HCL bar features 12 powerful 10 W LEDs (6in1) in red, green, blue, amber, white and UV with a beam angle of 20°. It is suitable for professional applications, for example on show stages or in theatres.
The LED bar provides stepless RGBAW+UV color mixing. Each of the 12 LEDs can be controlled individually. In addition to use in stand-alone mode or via music control, the bar can also be controlled via DMX and in master-slave mode as well as with the supplied infrared remote control.
Addressing and settings can be made via the integrated control board with four control buttons and LED display.
The mains connections allow you to operate up to eight devices in a row.

Features

LED bar (100cm) with 12 x 10 watt 6in1 HCL RGBWA/UV LED

12 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
LEDs controlled separately
Color blend stepless; color change adjustable; Dimmer electronic
Strobe effect; UV effect
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Flicker-free
With a beam angle of 20°
With mounting bracket
Mains input and output for power linking up to 8 units

Package contents

1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	60 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	IEC connector (F) mounting version
Fuse:	T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	12 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:	4; 6; 16; 36; 74
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control
Preprogrammed in:	Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle:	20°
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	41°
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Length: 100 cm Depth: 11,5 cm Height: 16,5 cm
Weight:	5,20 kg
Photobiological safety:	Risk Group 0
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397602654	6,20 kg	103,5cm x 19cm x 14,5cm
2	4026397602661	13,40 kg	106cm x 22cm x 35cm

Accessories

Loading accessories. Please wait...

Support

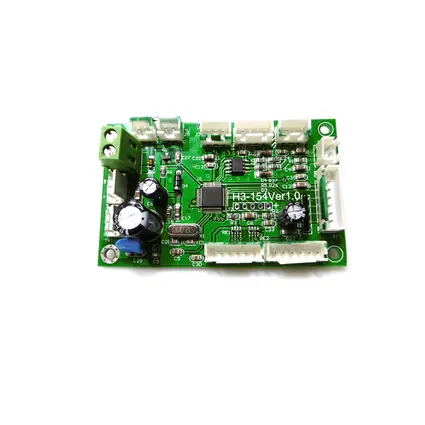

Spare parts

Pcb (LED) LED PIX-12 HCL Leiste (L2-105Ver1.0)

Pcb (Power supply) 5V/10A LED PIX-6 HCL Bar (FX-PFC-5V)

Fan 5V/0,23A 50x50x10mm (5S5010)

More 5 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
