LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control
EUROLITE LED PIX-144/72 RGB/CW Bar

Name: EUROLITE LED PIX-144/72 RGB/CW Bar
Uploaded: 2022-01-01
Description: LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control

LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control-MainBild

120°

LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control

EUROLITE LED PIX-144/72 RGB/CW Bar

Stock for approx. 12 wk(s)

149,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51930353

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED PIX-144/72 RGB/CW Bar

Features

LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control

144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
segments controlled separately
72 powerful LEDs SMD 5730 cold white (CW)
Color change adjustable; Dimmer electronic; color blend stepless; color animations with two adjustable colors
Strobe effect
16 integrated show programs
The device is cooled by passive convection cooling
Control via stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light´J; Light Captain
Flicker-free
With a beam angle of 120°
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; advertisement/Shop window
Silent operation
Application possibility: Suspended; wall mounting

Package contents

1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	55 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	IEC connector (F) mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	144 x SMD 5050 3in1 TCL RGB (homogenous color mix) 72 x SMD 5730 cold white (CW)
Flash rate:	10 Hz
DMX channels:	6; 16; 84
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light´J; Light Captain
Projection:	Flicker-free
Beam angle:	120°
Beam angle (1/2 peak):	120°
Housing color:	Black
Attachment system:	2x mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Length: 108.5 cm Depth: 6.5 cm Height: 9.0 cm
Weight:	1.63 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397709650	1,94 kg	103cm x 12cm x 11cm
8	4026397709667	16,90 kg	106cm x 49cm x 26,5cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Cover (plastic/front) LED PIX-144 RGB 988x56mm

Pcb (LED) LED PIX-144/72 RGB/CW (XCY-144-72-L4.2)

Pcb (Display/Control) LED PIX-144/72 RGB/CW (LED-XQD-2418-M-V3.0)

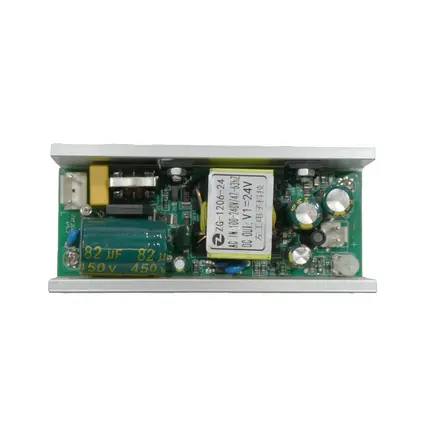

More 1 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
