Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	240.00 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	10 x 3-pin screw plug connector (F) IP 1 x IEC connector (F) mounting version
DMX channels:	5; 7; 23; 480
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function
Fixtures available for:	LED PC-Control 512
Display type:	3 digit 7-segment LED display
Output:	24 V DC, stabilized;
Dimensions:	Width: 29 cm Depth: 30 cm Height: 6 cm
Weight:	3.30 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397448016	3,60 kg	39,5cm x 35cm x 11,5cm
4	4026397448023	15,35 kg	69cm x 44cm x 24,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51928780-Support-105965-1.0000-51928780-LED-PC-Control-fixtures-de.zip (826 B)	1.0000	de

Video file

Name	Version	Language
51928780-Video-66034-de_en_es_fr.flv (20 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51928780-Images-.zip

Video link

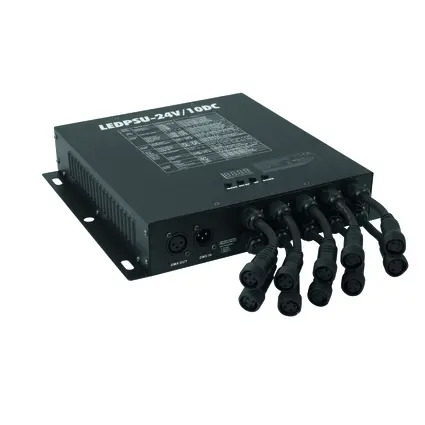

EUROLITE LED PSU-24V/10 DC LED Tube 360°

The article is no longer in our assortment.

No. 51928780

Controller for EUROLITE LED Pixel Tubes 360°

Controller and power supply unit for 10 LED light tubes
Color change adjustable; Dimmer electronic; color blend stepless
Strobe effect
Control via stand-alone; DMX; sound to light via microphone; master/slave function
3 digit 7-segment LED display
Mains input and output for power linking up to 8 units
