LED bar for pixel mapping applications

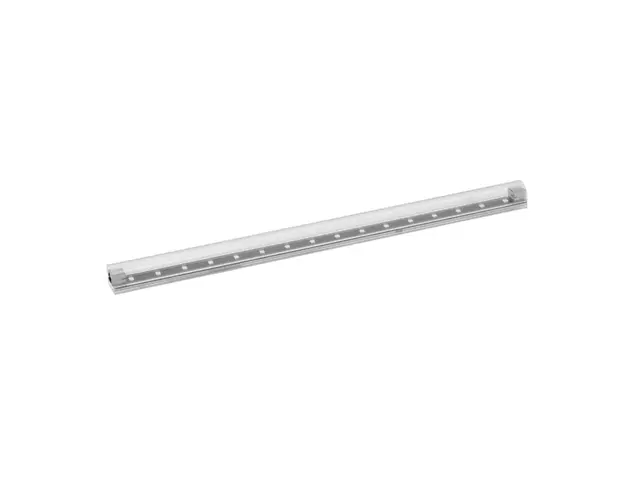

EUROLITE LED Pixel Pole 50cm

svg
180°
svg
svg
EUROLITE

LED bar for pixel mapping applications

EUROLITE LED Pixel Pole 50cm

Stock for approx. 12 wk(s)
44,90
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51928715

Features

LED bar for pixel mapping applications

  • LED bar with 16 or 32 pixels for video and pixel mapping applications via Art-Net
  • Ultra-bright 3in1LEDs for smooth RGB color mixing
  • 180° beam angle
  • Each LED individually addressable for displaying multimedia content or stunning running light effects, color fades and animations
  • Modular concept allows build-up of large effects for clubs, stages, shops and various other environments
  • Signal distribution via UTP cable
  • Control via Art-Net/DMX with the optional controller LED PSU-4A
  • Easily create animations with MADRIX or any other control software supporting Art-Net
  • Stand-alone operation possible with 30 built-in light programs
  • RGB color mixture, dimmer, strobe, Master/Slave
  • Mounting material included in delivery
  • Truss holders available as accessory
  • LED: 16 x SMD 5050 3in1 TCL RGB (homogenous color mix)
  • Control: via accessories
Technical specifications
Power supply:24 V DC
Power consumption:2 W
Power connection:Mains input RJ45 (F) mounting version
LED:16 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Signal:2 x RJ45 (F) mounting version
Control:via accessories
Beam angle (1/2 peak):180°
screen:16 px
pixel pitch 30 mm
Housing color:Silver
Length:50 cm
Height:3,2 cm
Depth:3,2 cm
Weight:0,11 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397565003 0,15 kg 51cm x 3,5cm x 3,5cm
2 4026397567632
12 4026397566680 2,13 kg 55cm x 27cm x 11cm
24 4026397568318 4,80 kg 57cm x 27cm x 20cm
