Mirror ball effect with TCL color mixture
EUROLITE LED B-15 Beam effect

EUROLITE

Mirror ball effect with TCL color mixture

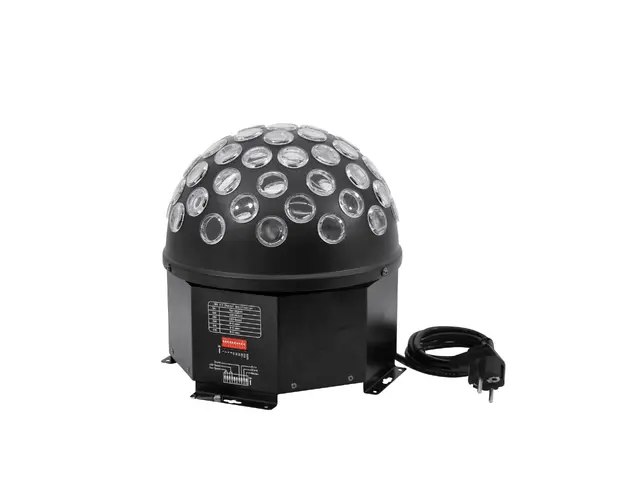

EUROLITE LED B-15 Beam effect

Item no. 51918830

This ball needs no mirrors!
Even if mirrorballs are classics and certainly possess a charm of their own, there are alternatives which should be considered. One of which is our EUROLITE LED B-15. The produced effect is very similar to that of mirrorballs - countless beams throw small dots of light onto walls, floor or ceiling. But the technology is different, more modern, therefore increasing the presentation possibilities. After all, the B-15 is equipped with a 10 Watt Tri-Color LED. It not only creates a powerful light, it can display the entire RGB color spectrum. Thanks to the Multichip-Technology, an exquisite color mix is created and the colors fade smoothly from one to the next. Since the B-15 is constructed as a half-ball, it can be installed on the floor, on the wall and on the ceiling. The beams exiting from the 55 lenses can be controlled via the built-in microphone in stand-alone mode, or via a regular DMX controller in DMX Mode. It doesn't always have to be a mirror ball, or?
Features

Mirror ball effect with TCL color mixture

  • Half ball with 55 lenses
  • Equipped with 1 x 10 W TCL (tricolor LED)
  • Particularly bright illuminating power of the LEDs
  • Long LED life
  • Up to 20 rotations per minute
  • Sound controlled via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Strobe effect
  • Auto mode
  • Internal program
  • Stepless RGB color changing
  • Programmable color-change speed and strobe effect
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Innumerable uses
  • When smoke is used, this effect becomes especially attractive
  • Ideal for bands, stages or solo entertainers
  • Hanging or standing installation possible
  • Mounting bracket for installation on a truss system included
  • Ready for connection with power cord and safety-plug
  • DIP switches for adjusting the DMX-starting, stand-alone operation with Master-/Slave-function and speed are adjustable via DIP switches
  • DMX512 control via regular DMX controller
  • Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:25,00 W
DMX channels:6
Width:25 cm
Height:25 cm
Depth:26,5 cm
Weight:3,10 kg
Rotation-speed:approx. 20 RPM
LED type:10 W TCL
LED number: 1
Sound-control:via built-in microphone
DMX channels:6
DMX connection:3-pin XLR
Dimensions (L x W x H):250 x 250 x 265 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397401509 3,60 kg 31,5cm x 32cm x 29,5cm
4 4026397401516 15,70 kg 65cm x 65cm x 34cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51918830-Manual-51841-2.000-de_en.pdf (1 MB) 2.000 de_en
Press report
Video file
Name Version Language
51918830-Video-47194-de_en_fr_es.flv (5 MB) 0.000 de_en_fr_es
All images
Name Version Language
51918830-Images.zip
