Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	5 x 10 W high-power 6in1 RGBWA/UV (homogenous color mix) 50 x 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	1; 6; 15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; IR remote control; DMX; master/slave function; sound to light
Fixtures available for:	LED PC-Control 512; Light Captain
Beam angle (1/2 peak):	5°
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Width: 41.8 cm Depth: 23 cm Height: 17.8 cm
Weight:	3.00 kg
Noise classification:	Class 2 (slight noise)
Photobiological safety:	Risk Group 0
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397632927	3,50 kg	46,5cm x 27,5cm x 21cm
4	4026397632934	15,00 kg	56,5cm x 48cm x 44,5cm

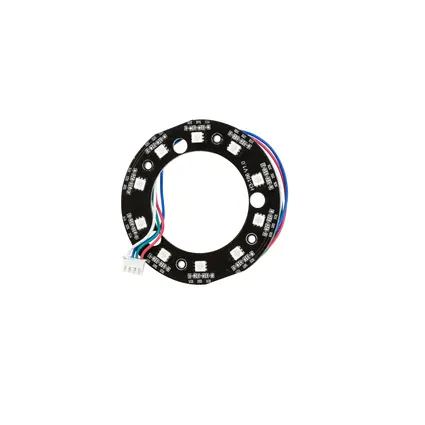

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51918672-Support-124406-1.0000-51918672-LED-PC-Control-Fixtures-de.zip (4 KB)	1.0000	de
51918672-Support-136687-Fixture-fuer-Colorchief-V2X-de.zip (216 B)	0.0000	de

All images

Name	Version	Language
51918672-Images-.zip

Video link

EUROLITE LED SCY-50 Hybrid Beam Effect

The article is no longer in our assortment.

No. 51918672

5°

LED spotlight with twofold effects: 6in1 RGBWA/UV LEDs, dynamic color effects and strobe

Individual control of all RGBAW+UV and RGB LEDs for use as blacklight, ambient light, stroboscope or PAR spotlight
5 LEDs 10 W high-power 6in1 RGBWA/UV (homogenous color mix)
50 LEDs 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Fan effect; strobe effect; UV effect
Integrated show programs
Direct color selection for 25 preset colors
The device is cooled by cooling fan
Control via stand-alone; IR remote control; DMX; master/slave function; sound to light
With a beam angle of 5°
With mounting bracket
For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels
Application possibility: Suspended; on stand
