Classic RGBW LED beam effect

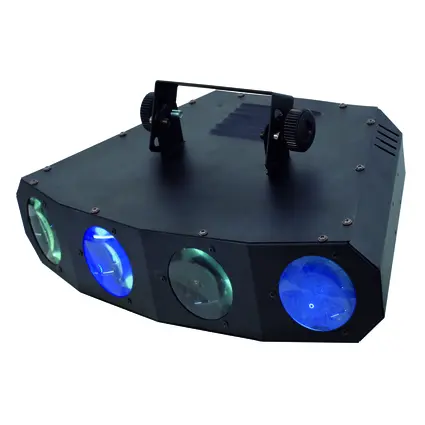

EUROLITE LED QDF-4 Beam effect


Classic RGBW LED beam effect

EUROLITE LED QDF-4 Beam effect

Item no. 51918570

Light in every nook and cranny!
It seems to be rather simple, does it not? A beam effect with 4 glass lenses, 228 5mm LEDs, that produces 4 light circles with 57 highly luminous diodes. But you should not take this easy way out, because, as it is true for many other things as well, the first impression can often mislead you. After all our EUROLITE LED QDF-4 joins considerably more features. Of course there is more than just four same-color circles that can be seen. Via DMX each color, red, blue, green and white, can be controlled at the lens and thus be perfectly defined. But both color and style, are able to change and are everything but monotonously. True, when all beams are put together, they do form circles. But, if intended, you can display just certain points and hence realize diversified patterns. Moreover, the attractive beam effect has a classical strobe at its disposal and flashes on colors and designs. Due to its angled form, the QDF is able to illuminate greater areas than many comparable devices.
  • 1 row of 4 glass lenses
  • Full, color intensive beams exit from every lens
  • Via DMX, each color (RGB + white) can be controlled at every lens
  • DMX512 control via regular DMX controller (occupies 6 channels)
  • Sound controlled via built-in microphone
  • Strobe effect
  • Auto mode
  • Internal programs
  • Master/Slave function
  • Rugged compact housing in a beautiful design
  • Ready for connection with power cord and safety plug
  • Innumerable uses
  • Ideal for bands, stages or solo entertainers
  • Mounting bracket for installation on a truss system included
  • Equipped with 228 x 5 mm LED
  • Particularly bright illuminating power of the 5mm LEDs
  • Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Technical specifications
Power supply:230 V AC, 50 Hz
DMX channels:6
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:5 mm
LED number:228
Beam angle:15°
Dimensions (L x W x H):315 x 470 x 175 mm
Weight:4 kg
Power consumption:30.00 W
Height:17,5 cm
Depths:47 cm
Width:31,5 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397351293 4,30 kg 51,5cm x 35cm x 19,5cm
4 4026397351309 18,90 kg 71,5cm x 54cm x 42cm
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
00061172.pdf 1.20 de/en
Name Version Language
00053096.dsp 1.10 es/fr/en/de
Gerätefile für Eurolite PC Software
1.00 de
Catalog pages
Name Version Language
00068618.pdf 6.00 de
Video file
Name Version Language
00041797.flv 0.00 de/en/fr/es
