RGB beam effect
EUROLITE LED Z-100 Beam effect

EUROLITE

RGB beam effect

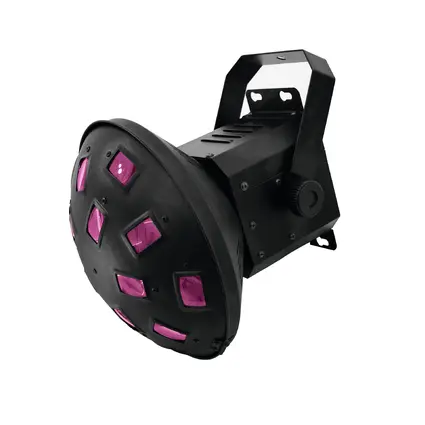

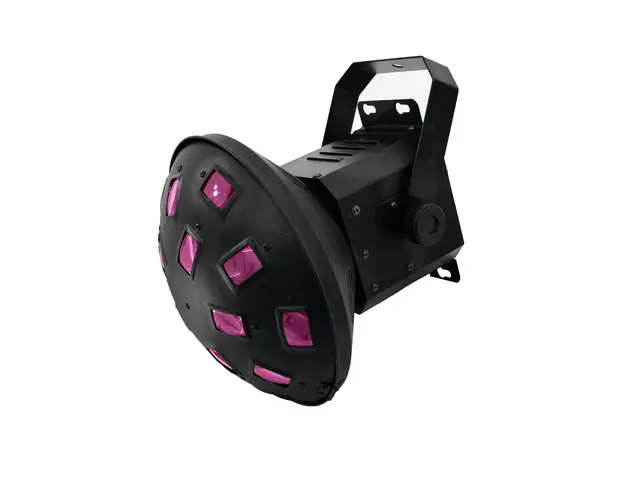

EUROLITE LED Z-100 Beam effect

Item no. 51918508

LED showers bring forth May flowers!
Classics are perfect things that have been known, accepted and usually loved for a long time by the general public. Sometimes these classics are revived and transported into the present. You can also find classics and their remodulated versions in the lighting industry. So the new LED-Z 100 hearkens back to the Z-20, one of the most established beam effects. They share the same housing, so they share the positioning of the 14 lenses. But the effect itself has changed. It has improved. No wonder, as two halogen bulbs got replaced by 66 LEDs. These 5mm diodes do shine more concentrated and thus brighter and more clearly. In addition, one has to consider the new kind of figure. Up to now it has only been possible to form isolated points, performing circular motions. Henceforward we can describe complete circles, consisting of many single points, in multi or single colors. All this thanks to the new technology. Due to this one, the effect's wide radiation angle is even more useful and it comes in really handy to rig it from a trussing or mount it as a center piece even in larger rooms. Furthermore, the well-known benefits of the LED technology are part of the game. You see, times have changed.
Features
  • Beams from every lens perform circular movements and change the direction of movement with every bass beat
  • When using smoke, the brilliant colors are especially fortified
  • The wide radiation angle of the effect allows the use even in larger rooms
  • Can be rigged from trussing or mounted as a center piece
  • Sound-controlled via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Equipped with 66 x 5 mm RGB LEDs
  • Ready for connection with power cord and safety-plug
  • Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Technical specifications
Power supply:230 V AC, 50 Hz
Sound-control:via built-in microphone
LED type:5 mm
Number of LEDs:66
Beam angle:60°
Dimensions (L x W x H):360 x 275 x 360 mm
Weight:3 kg
Power consumption:15.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397357165 3,30 kg 32cm x 32cm x 31,5cm
4 4026397357172 15,00 kg 65cm x 65cm x 34cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00043052.pdf 1.10 es/fr/en/de
Catalog pages
Name Version Language
00067222.pdf 21.00 de
00067981.pdf 21.00 en
00086541.pdf 23.00 de
00087119.pdf 23.00 en
Video file
Name Version Language
00041693.flv 0.00 de/en/fr/es
