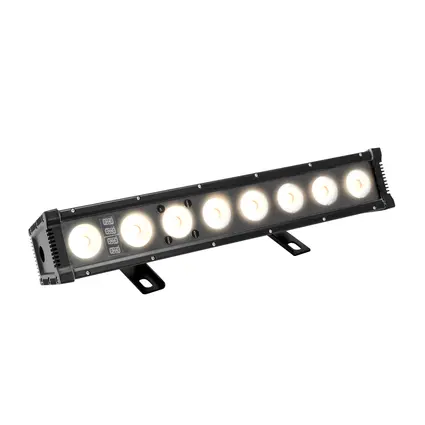

Weather-proof bar (IP65) with 8 x 5 W warm white LED, 52 cm length
EUROLITE LED IP T1000 WW Bar

EUROLITE

Weather-proof bar (IP65) with 8 x 5 W warm white LED, 52 cm length

EUROLITE LED IP T1000 WW Bar

Stock for approx. 12 wk(s)
269,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51914109

Features
  • Equipped with 8 x 5 W WW LED by CREE
  • Flicker-free projection
  • 1 or 3 DMX channels selectable
  • For architectural lighting
  • Special lenses offer a larger beam angle horizontally than vertically: 10x40°
  • Suitable for external use (IP65)
  • Fully convection cooled, no fan
  • Dimmer
  • Different dimmer curves and dimmer speed (step response) adjustable
  • Strobe effect with adjustable speed
  • Random strobe effect
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Addressing and setting via Control Board with LED display and four operating buttons
  • Locking possibility at the brackets
  • Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
  • Feed-through output allows to power up to 8 devices
  • Color generation: WW
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Protection grade:IP65
DMX channels:1/3
DMX connection:3-pin screw connector
Flash-rate:18 Hz
LED type:5 W WW
LED number:8
Color temperature: 3000 K
Beam angle:10°x40°
Dimensions (L x W x H):524 x 184 x 95 mm
IP classification:IP65
Beam angle:10 °
Beam angle:40 °
Cooling fan:No, cooling by convection
Weight:4.2 kg
Lamp type:LED lamp
Power consumption:25 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397589764 5,05 kg 58cm x 15cm x 22cm
4 4026397589771 21,30 kg 60cm x 32cm x 47cm
