PAR-56 Short Spot with 3 W tricolor LEDs
EUROLITE LED PAR-56 TCL 9x3W Short black

EUROLITE

PAR-56 Short Spot with 3 W tricolor LEDs

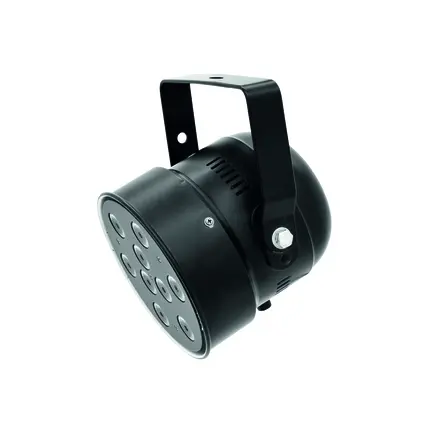

EUROLITE LED PAR-56 TCL 9x3W Short black

Item no. 51913611

Features
  • Operable in stand-alone mode or via DMX
  • DMX-512 control possible via any commercial DMX-controller (occupies 5 channels)
  • 3 or 5 DMX channels selectable for numerous applications
  • Sound-control via built-in microphone
  • Adjustable microphone sensitivity via LED display
  • Comfortable addressing and setting via control panel with LED display and three operating buttons
  • Functions: static colors; RGB color mixture, internal programs, dimmer and strobe settings via DMX; master/slave
  • Equipped with 9 x 3 W TCL LEDs
  • Housing available in silver or in black
  • Locking possibility at the mounting bracket
  • Ready for connection via power cord with safety plug
  • Color generation: RGB
Technical specifications
Power supply:230 V AC, 50 Hz
DMX-control-channels:3/5
DMX-512-connection:3-pin XLR
Sound-control:via built-in microphone
LED type:3 W TCL
LED number:9
Beam angle:14°
Dimensions (L x W x H):165 x 205 x 215 mm
Weight:1.5 kg
Power consumption:455.00 W
IP classification:IP20
Lamp type:LED lamp
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397448979 2,05 kg 21,5cm x 21cm x 27,5cm
4 4026397448986 9,25 kg 46cm x 45,5cm x 31cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00066247.pdf 1.00 de/en
Support
Name Version Language
51913610 LED PC Control fixtures
00105559.zip
1.00 de
Catalog pages
Name Version Language
00097301.pdf 25.00 de
00098079.pdf 25.00 en
Video file
Name Version Language
00069616.flv 0.00 de/en/fr/es
All images
Name Version Language
51913611.zip
