LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port
EUROLITE LED TMH-S180 Moving-Head Spot

svg
svg
10°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port

EUROLITE LED TMH-S180 Moving-Head Spot

Stock for approx. 12 wk(s)
799,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 51786086
EUROLITE LED TMH-S180 title image

Eurolite LED TMH-S180

Eurolite TMH-S180: Powerful spot in a compact format


The LED TMH-S180 from Eurolite offers powerful light output thanks to its cool white 200-watt LED, but is compact enough for mobile use. It weighs in at just over 11 kg, but packs the kind of power you'd expect from larger units.

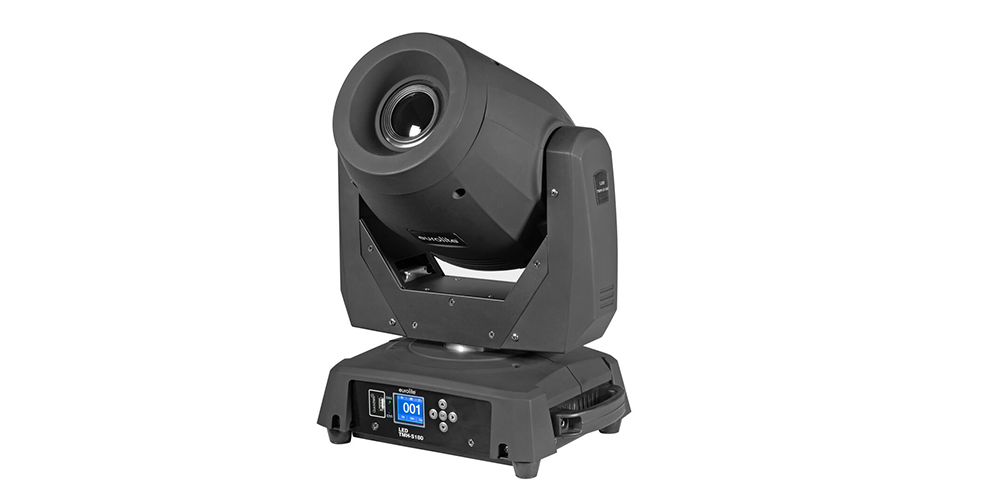

EUROLITE LED TMH-S180 front view
Spotlight with gobos
The light source in the spotlight is a bright, 200 watt COB LED in cool white. Different patterns for projection come from the gobo wheel, which also offers the possibility of rotation. The rotating gobos can be easily replaced without tools thanks to the gobo slot-in system.

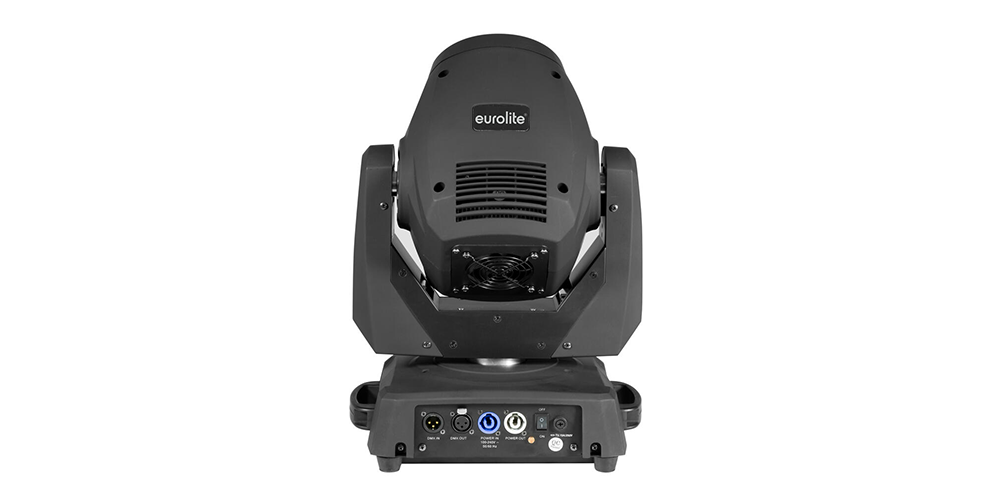

EUROLITE LED TMH-S180 connections
Prism and color wheel provide variety
Further variations are created by the prism, which triples the image and can also rotate. A color wheel with 8 dichroic color filters provides colors in the spot.
Features

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port

  • 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
  • Positioning within 540° PAN and 270° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
  • Multi beam effect; gobo effect
  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • Integrated show programs
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
  • Flicker-free
  • With a beam angle of 10°
  • LCD display
  • Dimmer electronic
  • Preprogrammed in LED PC-Control 512; Light Captain
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; Stage; Rental
  • Application possibility: Standing; suspended

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:265 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Fuse:5 x 20 mm, T 3,15 A Fuse replaceable
Lamp type:LED lamp
LED:1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement:270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:0 - 18 Hz
Equipment:Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
Color generation:Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23,5mm
Image diameter 15mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:13; 15
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
Preprogrammed in:LED PC-Control 512; Light Captain
Beam angle:10°
Beam angle (1/2 peak):10°
Illuminance in Lux (lx):Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
Housing color:Black
Display type:LCD display
Dimensions:Width: 32,5 cm
Depth: 27,0 cm
Height: 45,5 cm
Weight:11,35 kg
Noise classification:Class 3 (clearly perceptible sounds)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
1402639770252112,80 kg53cm x 44cm x 31cm
