Powerful scanner

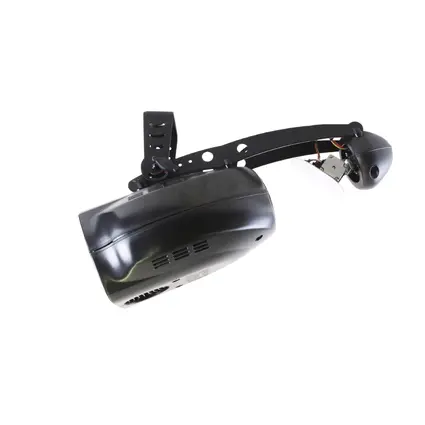

EUROLITE TS-150 Scan

EUROLITE

Powerful scanner

EUROLITE TS-150 Scan

Item no. 51786020

Features

Powerful scanner

  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • For bright 150 W discharge lamp
  • Color-wheel with 12 dichroic color filters, 2 bi-color filters and white
  • Gobo-wheel with 14 gobos and open
  • Manual focus
  • Strobe effect with adjustable speed (1-7 flashes/sec.)
  • DMX control via every standard DMX controller
  • 5 DMX control channels required
  • Sound-controlled via built-in microphone
  • 5 high-quality stepping-motors
  • Suitable EUROLITE controllers: DMX Operator
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:320,00 W
Width:27 cm
Height:28,5 cm
Depth:55,5 cm
DMX channels:5
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Flash-rate:1-7 Hz
Number of colors:14 dichroic + white
Number of gobos:14 gobos and open
PAN-movement:within 180°
TILT-movement:within 90°
Dimensions (L x W x H):555 x 270 x 285 mm
Weight:8 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397120868 9,75 kg 58,5cm x 30,5cm x 32,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51786020-Manual-7906-1.600-es_fr_en_de.pdf (4 MB) 1.600 es_fr_en_de
DMX protocol
Name Version Language
51786020-DMX-4318-de_en_fr_es.pdf (62 KB) 0.000 de_en_fr_es
51786020-DMX-4352-es_fr_en_de.doc (36 KB) 0.000 es_fr_en_de
Service document
Video file
Name Version Language
51786020-Video-40286-de_en_fr_es.flv (5 MB) 0.000 de_en_fr_es
All images
Name Version Language
51786020-Images.zip
