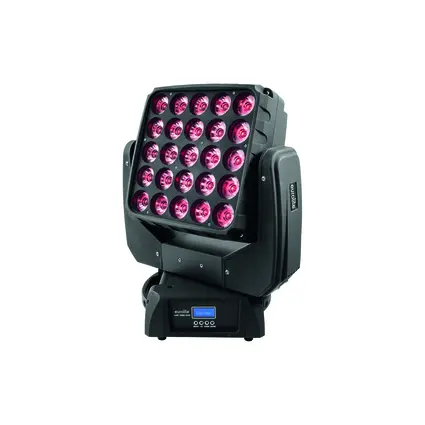

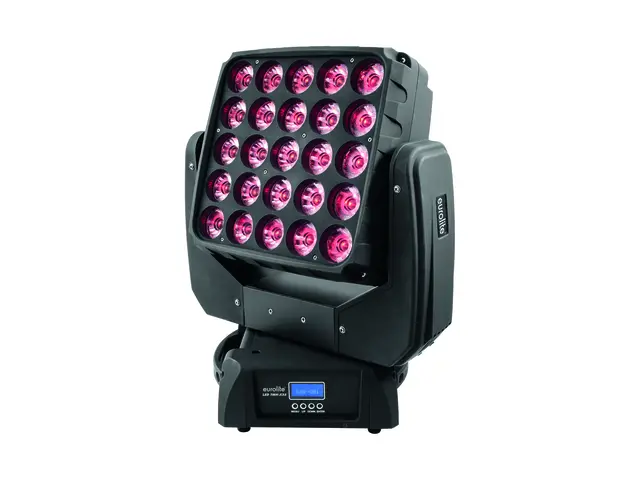

5x5 Matrix Panel, bright 12 W RGBW LEDs, narrow beam angle
EUROLITE LED TMH-X25 Moving Head

EUROLITE

5x5 Matrix Panel, bright 12 W RGBW LEDs, narrow beam angle

EUROLITE LED TMH-X25 Moving Head

Stock for approx. 12 wk(s)
899,00
Save money: This article is available in a bundle.
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51785991

Save money: This article is available in a bundle.
Sets are loaded. Please wait...
Features
  • Equipped with 25 x 12 W COB LED in the colors red, green, blue and white
  • Each LED can be controlled individually
  • Suitable for pixel mapping applications
  • Narrow illumination angle
  • 16 or 116 DMX channels selectable
  • Functions: RGBW color mixture, automatic color change, built-in programs, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer, sound-control, Master/Slave operation
  • Dimmer speed (step response) adjustable
  • Sound-control via built-in microphone; sensitivity adjustable
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 360°
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
  • Case color: Black
  • Effect: Multi beam effect
  • Projection: flickerfree
  • Color rendering index (CRI) more than:
  • Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
  • Power out: 1 x Powercon (Power-Out)
  • Control: DMX; Stand-alone
  • LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix)
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:16/116
DMX connection:5-pin and 3-pin XLR
Flash-rate:18 Hz
Sound-control:via built-in microphone
LED number:25
LED type:12 W RGBW (COB)
Maximum PAN-movement:540°
Maximum TILT-movement:270°
Beam angle:
Dimensions (W x D x H):220 x 370 x 470 mm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Lamp type:LED lamp
Weight:10 kg
Cooling fan:Yes
IP classification:IP20
Power consumption:245 W
Laser class:Without laser
Beam angle:
Height:47 cm
Depth:22 cm
Width:37 cm
Max. TILT movement:Exact positioning (16 bit resolution) 270° Pan tilt feedback
Power connection:Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels:16; 116
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 360° Pan tilt feedback
LED:25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix)
Power supply:110-240 V AC, 50/60 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397550795 13,15 kg 45cm x 36cm x 47cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51785991-Manual-94116-1.10-de_en.pdf (2 MB) 1.10 de_en
Video file
Name Version Language
51785991-Video-93145-de_en_fr_es.flv (23 MB) 0.00 de_en_fr_es
All images
Name Version Language
51785991-Images.zip
Publications
main catalog 2018 St. E #27
On page: 120
Size: 121 MB
