RGBW Mini-Beam with 2 controllable heads and unlimited PAN movement

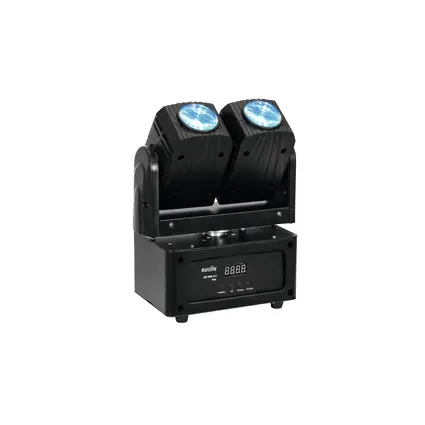

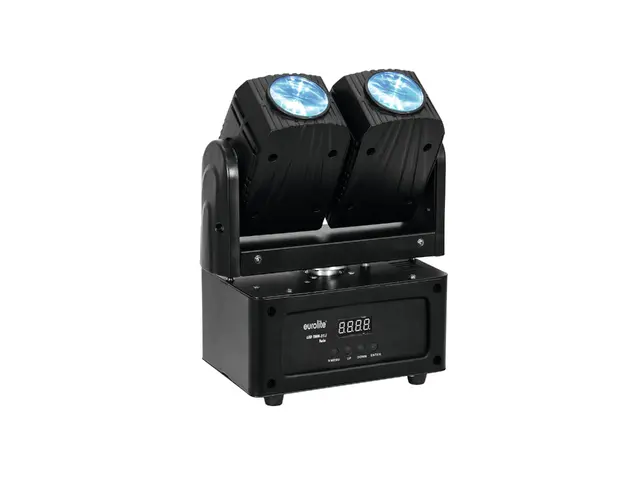

EUROLITE LED TMH-21.i Twin Moving Head Beam

mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-MainBild
download image
Detail images (10 overall)
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-1
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-3
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-4
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-5
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-6
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-7
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-8
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-9
mpn51785979-eurolite-led-tmh-21i-twin-moving-head-beam-Bild-10
svg
5°
svg
svg
svg
svg
svg
svg
svg
EUROLITE

RGBW Mini-Beam with 2 controllable heads and unlimited PAN movement

EUROLITE LED TMH-21.i Twin Moving Head Beam

this item is not in stock.
199,00 €
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51785979

Print product
Product badge
TMH-21

Two beams in one device

Double beam effect thanks to two separately controllable LED heads - with endless PAN movement. An arrangement that allows very special effects and weighs only 3 kg together. Equipped with two 10 W QCL LEDs from CREE in RGBW, the double beam knows how to present itself powerfully. The beam angles of the beams are 5°.
Features

RGBW Mini-Beam with 2 controllable heads and unlimited PAN movement

  • With Infinity function for unlimited PAN movement
  • TILT movement for each LED head separately and steplessly adjustable
  • Equipped with two 10 W quadcolor LEDs (CREE) with RGBW colors
  • Each LED can be controlled individually
  • Narrow beam angle
  • Compact lightweight
  • 17 or 24 DMX channels selectable
  • Functions: Colored beams in R, G, B and W, auto mode, sound control, color presets, strobe settings, Master/Slave function, built-in programs
  • Stepless RGBW color mixture
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Addressing via control panel with 4-digit LED display
  • IEC terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: DMX; Sound to light via Microphone; Stand-alone
  • Projection: flicker-free
  • Effect: Multi beam effect
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:30 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
LED:2 x high-power 10 W 4in1 QCL RGBW
Max. TILT movement:Exact positioning (16 bit resolution) 270°
Max. PAN movement:Exact positioning (16 bit resolution) plus infinity
Flash rate:0 - 18 Hz
DMX channels:17; 24
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling fan:No, cooling by convection
Control:DMX
Sound to light via Microphone
Stand-alone
Beam angle (1/2 peak):5°
Illuminance in Lux (lx):R red 3m: 540 lx, 6m: 177 lx
G green 3m: 1097 lx, 6m: 305 lx
B blue 3m: 222 lx, 6m: 60 lx
CW 3m: 1686 lx, 6m: 454 lx
Housing color:Black
Width:21,5 cm
Height:23 cm
Depth:12,5 cm
Weight:2,85 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397551525 3,33 kg 25cm x 18,5cm x 28cm
8 4026397562231 28,00 kg 78cm x 52cm x 37cm
