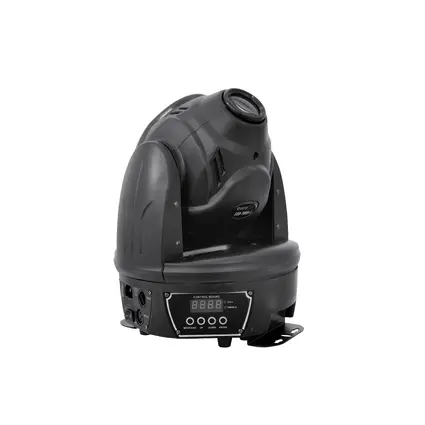

High performance LED Head Spotlight with 30 W LED
EUROLITE LED TMH-3 Moving Head Spot

High performance LED Head Spotlight with 30 W LED-MainBild

High performance LED Head Spotlight with 30 W LED

EUROLITE LED TMH-3 Moving Head Spot

The article is no longer in our assortment.

No. 51785975

Here you find the manual and downloads for
EUROLITE LED TMH-3 Moving Head Spot

Remarkable brightness in a small package
The Eurolite LED TMH-3 comes with all characteristics a modern moving light in this class needs: the built-in 30-watt LED is state of the art and guarantees a remarkable brightness thanks to its high grade of efficiency. At the same time the LED TMH-3 is very compact and space saving: It only needs a small base area of 265 millimeters in diameter and is ultra-light with its 7 kilograms. Yet in terms of energy and maintenance costs the compact spot lights opponents are outshined by the TMH-3, whose power consumption is low at 100 watts maximum.
The product family is completed by a bright washlight with 36 LEDs (TMH-4) and a matrix projector for impressive beam effects with 64 LEDs (TMH-5).

Features

High performance LED Head Spotlight with 30 W LED

Compact lightweight
Equipped with 1 LED 30 W
7 brilliant, dichroic colors plus white
Rainbow effect with adjustable speed in both directions
Gobo-wheel with 6 rotating gobos plus open
Preprogrammed scenes in Program Run for stand-alone operation
Electronic dimmer
Strobe effect with adjustable speed
Sound-controlled via built-in microphone
Fan-cooled
Manual focus
Exact positioning via 16 bit PAN/TILT movement resolution
Positioning within 540° PAN and 255° TILT
DMX-controlled operation or stand-alone operation with Master/Slave function
Control board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
DMX control via every standard DMX controller

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	100,00 W
Dimensions:	Width: 26,5 cm Depth: 26,5 cm Height: 32 cm
Weight:	7,30 kg
DMX channels:	10
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
Color-wheel:	7 colors and open
Rotating gobo-wheel:	6 gobos and open
LED number:	1
LED type:	30 W
Beam angle:	12°
Ventilation fan:	Yes
Maximum PAN-movement:	540°
Maximum TILT-movement:	255°
Dimensions (L x W x H):	265 x 265 x 320 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397390124	8,50 kg	35cm x 35cm x 44,5cm

Support

Spare parts

timing belt HTD 285-3M

Stepping-motor for TMH-3 (gobo rotation)

FUTURELIGHT bridge rectifier KBPC 3510
