Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	75 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	18 x 3 W high-power 3in1 RGB (homogenous color mix)
Max. TILT movement:	180° exact positioning (16 bit resolution)
Max. PAN movement:	540° exact positioning (16 bit resolution)
Flash rate:	0 - 18 Hz
DMX channels:	11
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; stand-alone; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Beam angle:	25°
Beam angle (1/2 peak):	25°
Housing color:	Black
Display type:	4 digit 7-segment LED display
Dimensions:	Width: 17.5 cm Depth: 17.5 cm Height: 24.5 cm
Weight:	3.10 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397483383	3,55 kg	28,5cm x 24,5cm x 27cm
1	4026397689464
6	4026397689594	22,40 kg	75cm x 31cm x 56cm
6	4026397483390	22,40 kg	75cm x 31cm x 56cm
6	4026397689624

Spare parts

OMNITRONIC XLR Cable 3-pin 3m bk

OMNITRONIC IEC Power Cable 3x0.75 1.5m bk

Pcb (Control) TMH-7 MINI15W-ZB

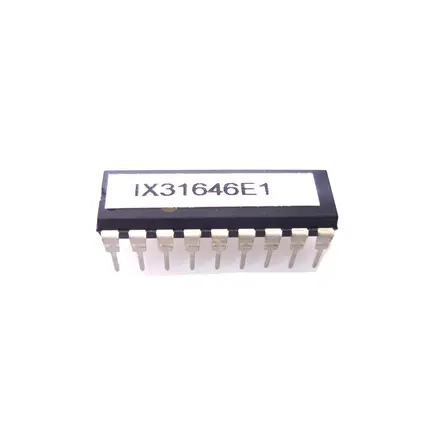

CPU (U4) TMH-7

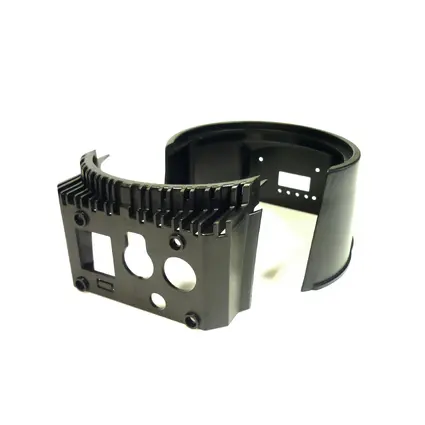

Cover TMH-6/7 (Yoke)

Cover TMH-6/7 (Base)

timing belt 213-3M MXL TMH-6/7 (Pan)

Lens Ø20x35 TMH-7

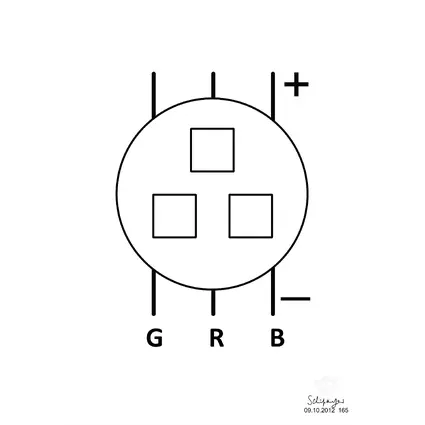

LED TCL 3W Pin=G-R-B TMH-7

LED TCL 3W Pin=B-R-G TMH-7 (JX-SPEC-GRB-003)

Sticker Set for TMH-7

FUTURELIGHT IC LM2576T-ADJ Step-Down Voltage

CPU (U11) STC12C5608 (Display) TMH-7

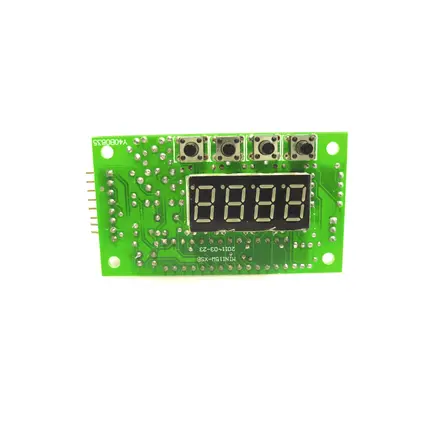

Pcb (Display) TMH-7 MINI15W-XSB

Eye Bolt M8

EUROLITE LED TCL 3W Pin=B-G-R LED Par-64 18x3W (TX-RGB1B140)

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

DMX protocol

Name	Version	Language
51785973-DMX-58377-1.0000-de_en_es_fr.xls (40 KB)	1.0000	de_en_es_fr

Support

Name	Version	Language
51785973-Support-61364-1.0000-ledtmh-7v10dsp-en.dsp (7 KB)	1.0000	en
51785973-Support-105595-1.0000-51785973-LED-PC-Control-fixtures-de.zip (1 KB)	1.0000	de

Press report

Name	Version	Language
51785973-Press-71924-1.0000-de.pdf (184 KB)	1.0000	de
51785973-Press-71925-1.0000-en_es_fr.pdf (176 KB)	1.0000	en_es_fr

Video file

Name	Version	Language
51785973-Video-60613-de_en_es_fr.flv (11 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51785973-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/XvNNbRJAUKE

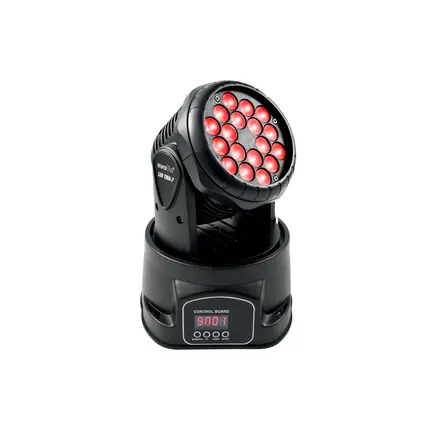

EUROLITE LED TMH-7 Moving Head Wash

Compact washlight with 3 W 3in1 LEDs and RGB color mixing-MainBild

Compact washlight with 3 W 3in1 LEDs and RGB color mixing-Bild-1

EUROLITE LED TMH-7 Moving Head Wash

The article is no longer in our assortment.

Check out the alternatives:

EUROLITE LED TMH-46 Moving Head Wash

interesting alternative, take a look!

No. 51785892

Stock for approx. 12 wk(s)

149,00 €

No. 51785973

25°

Compact washlight with 3 W 3in1 LEDs and RGB color mixing

Equipped with 18 x 3 W tricolor LEDs with RGB colors
Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
Compact lightweight
Positioning within 540° PAN and 180° TILT
Stepless RGB color mixture
6 color macros can be called up via DMX controller
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
DMX control via every standard DMX controller
18 LEDs 3 W high-power 3in1 RGB (homogenous color mix)
Exact positioning (16 bit resolution)
Can be operated in 11 CH mode
The device is cooled by cooling fan
Control via DMX; stand-alone; sound to light via microphone
With a beam angle of 25°
4 digit 7-segment LED display
