Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom
EUROLITE LED TMH-W63 Moving Head Zoom Wash

svg
svg
svg
6 - 29°
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom

EUROLITE LED TMH-W63 Moving Head Zoom Wash

Stock for approx. 12 wk(s)
289,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51785885

Features

Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom

  • 7 high-power 9 W RGBW LEDs (4in1)
  • Positioning within 540° PAN and 220° TILT
  • Stepless RGBW color mixture
  • Built-in auto and music show programs
  • Motion macros
  • Strobe effect with variable speed
  • Strobe effect by random generator
  • Dimmer
  • Motorized zoom with 6-18° beam angle
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset

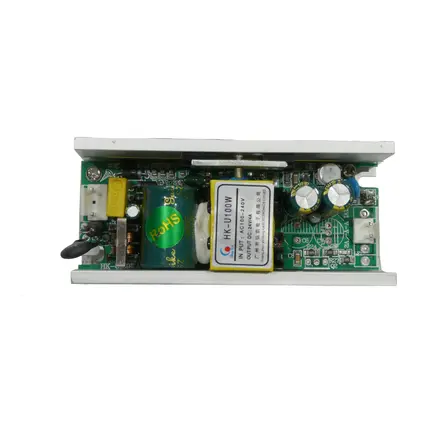

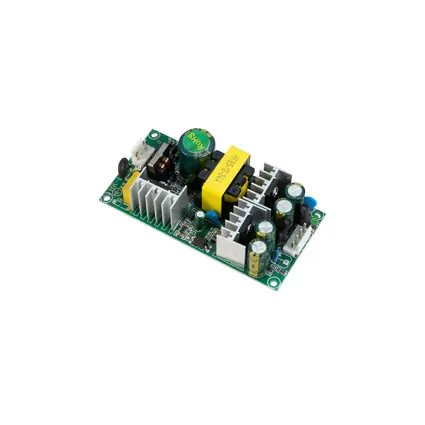

  • Switch-mode power supply for operation between 100 and 240 volts
  • Additional rubber feet when the spot shall be positioned on the floor
  • LED: 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 15 CH mode
  • The device is cooled by cooling fan
  • Controling by Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
  • Flicker-free projection
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:100 W
IP classification:IP20
Power connection:Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse:5 x 20 mm, T 2 A Fuse replaceable
LED:7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:Exact positioning (16 bit resolution) 220°
Max. PAN movement:Exact positioning (16 bit resolution) 540°
Equipment:Zoom motor-driven
DMX channels:15
DMX input:3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version

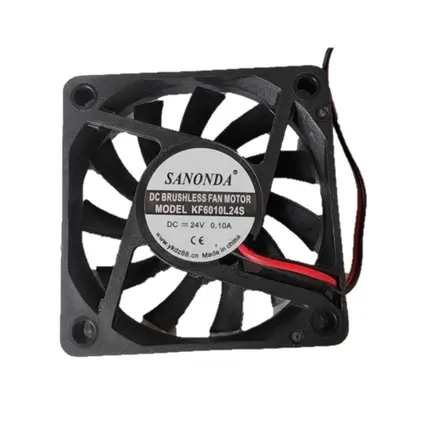

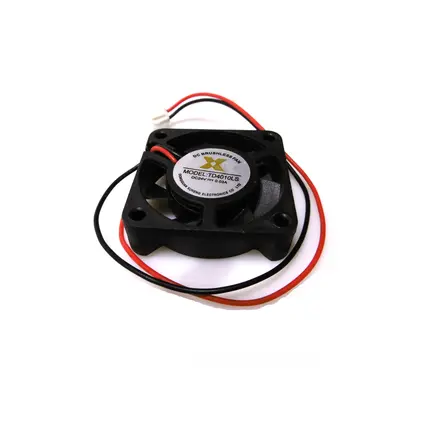

Cooling:Cooling fan
Control:Stand-alone
DMX
QuickDMX via USB (optional)
Master/slave function
Sound to light via Microphone
Beam angle:6 - 29°
Beam angle (1/2 peak):6 - 18°
Beam angle (1/10 peak):11 - 29°
Illuminance in Lux (lx):R red 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx
G green 1m: 15691 lx, 3m: 2179 lx, 6m: 549 lx
B blue 1m: 2497 lx, 3m: 406 lx, 6m: 103 lx
CW 1m: 17115 lx, 3m: 2398 lx, 6m: 605 lx
All 1m: 40258 lx, 3m: 5714 lx, 6m: 1432 lx
Housing color:Black
Display type:4 digits 7-segment LED display
Width:21.0 cm
Height:29.5 cm
Depth:16.0 cm
Weight:4.17 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397672695 4,70 kg 27cm x 27cm x 34cm
4 4026397675764 19,95 kg 56cm x 36cm x 56cm
Accessories
Loading accessories. Please wait...
Support

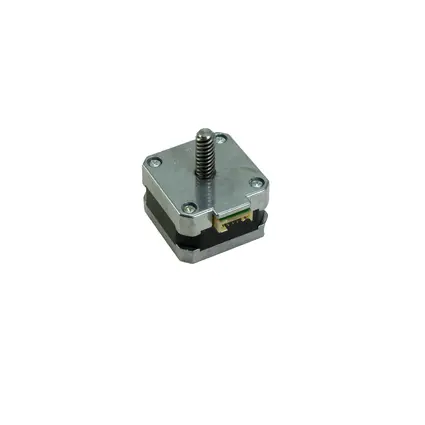

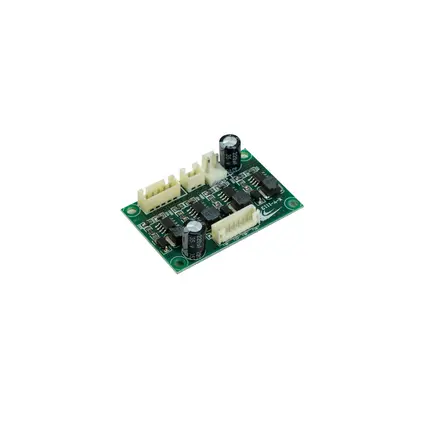

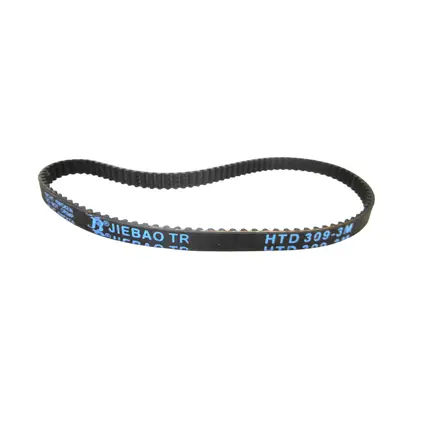

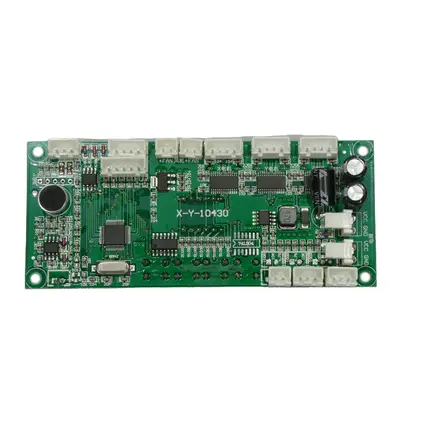

Spare parts
