Laser bar with class 3b in red, green and blue with10 x 120/90/140 mW


Laser bar with class 3b in red, green and blue with10 x 120/90/140 mW


Item no. 51743234

This special laser effect creates fans of laser beams and can be controlled through DMX or runs in stand-alone or music mode.

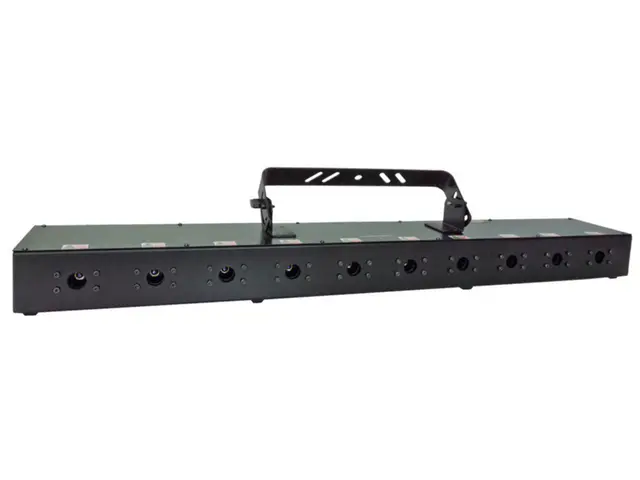

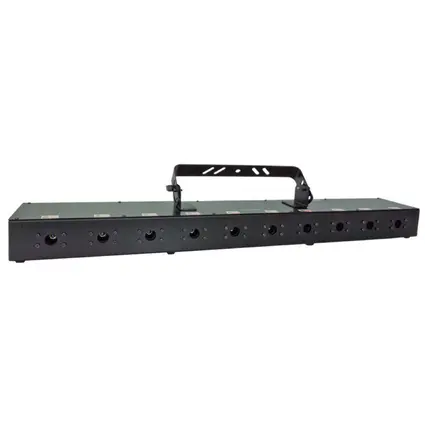

The BeamBar 10RGB-W is a bar with 10 RGB whitelight beam laser outlets. Each is equipped with 120 mW / 638 nm, 90 mW / 520 nm, 140 mW / 450 nm.

The advantages of the BeamBar 10RGB-W are:

well-balanced white
very bright colors
very affordable
a very good beam profile
bracket for two-point-mounting is included in delivery

This show laser light provides an analog modulation. It means a better color fading and a much broader color hue. These facts make the Laserworld BeamBar devices ideal for all applications requiring many different color hues and color fadings.

Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front - so opening the housing is not necessary.

The BeamBar 10RGB-W can be controlled through 13 DMX channels, so each laser source can be controlled individually. Thus it is possible to create many different chaser, beam or fan effects.

Due to the standard DMX compatibility, the BeamBar 10RGB can easily be integrated into an existing lighting setup.

This laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The BeamBar 10RGB-W is a great effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.
  • Laser color: RGB
Technical specifications
Guaranteed power at aperture: 3500 mW
Power Red: 10 x 120 mW / 638 nm
Power Green: 10 x 90 mW / 520 nm
Power Blue: 10 x 140 mW / 450 nm
Beam Specifications: <3.0 mm / <1.5 mrad
Laser Sources: Diode
Laser Class: 3B
Operation Modes: DMX, stand-alone, master-slave
Accessories: Interlock connector, manual, key
Power supply: 100-250 V AC 50/60 Hz
Dimensions (L x W x H): 1000 x 160 x 88 mm
Weight: 11 kg
Laser class:Class 3B
IP classification:IP20
Packaging units
PU EAN Weight Dimensions
1 7640144997274 10,00 kg 110cm x 22cm x 17cm
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
1.00 fr/de/en
Catalog pages
Name Version Language
00115212.pdf 27.00 de
00115649.pdf 27.00 en
