Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	40 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	8 x 1 W SMD 8072 cold white (CW) (homogenous color mix) 5 x 3 W SMD 8072 R/G/B/W/A
Flash rate:	0 - 30 Hz
Laser class:	2M
Laser color:	R/G
Laser module:	Green (G) 50 mW 532nm Red (R) 100 mW 650nm
DMX channels:	9
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Beam angle:	17°
Beam angle (1/2 peak):	17°
Housing color:	Black
Dimensions:	Width: 24.6 cm Depth: 31.5 cm Height: 31.3 cm
Weight:	4.55 kg
Color LEDs:	5 x RGBWA, 3 W each
Strobe LEDs:	8 x white, 1 W each
DMX connection:	3-pin XLR

Packaging units

PU	EAN	Weight	Dimensions
1	4026397532302	5,10 kg	35,5cm x 29cm x 33cm
2	4026397537963	11,15 kg	61cm x 37cm x 36cm

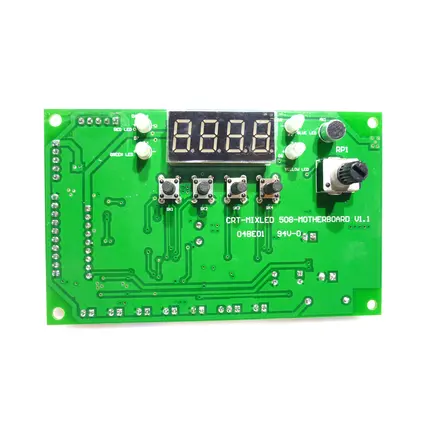

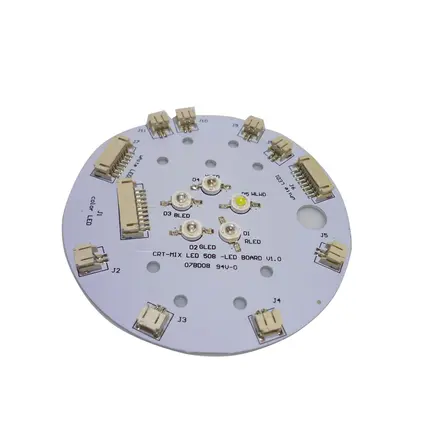

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51741080-Support-123455-1.1000-51741080-LED-PC-Control-Fixture-de.zip (2 KB)	1.1000	de

Video file

Name	Version	Language
51741080-Video-89698-de_en_es_fr.flv (25 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51741080-Images-.zip

Video link

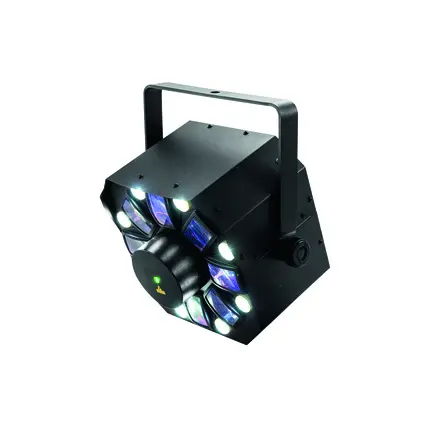

EUROLITE LED FE-1500 Hybrid Laser Flower

The article is no longer in our assortment.

Check out the alternatives:

No. 51741080

17°

Bright effect with derby, laser (class 2M) and stroboscope

3-in-1 DMX light effect with red and green laser diodes, rotating LED derby and white strobe LEDs
Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
2 laser diodes project thousands of red and green laser beams
Rotating derby for mirror ball effects with five 3 W LEDs (red, green, blue, white and amber)
Eight white 1 W strobe LEDs
Auto, music, master/slave and DMX mode
7 built-in auto and music show programs
Addressing and setting via control panel with 4-digit LED display
Sound-control via built-in microphone with sensitivity control
Mounting bracket for flexible wall mounting and ceiling suspension
When fog is used, this effect becomes especially attractive
Switch-mode power supply for operation between 100 and 240 Volts
Feed-through output allows to power up to 8 devices
8 LEDs 1 W SMD 8072 cold white (CW) (homogenous color mix)
5 LEDs 3 W SMD 8072 R/G/B/W/A
Multi beam effect; flower effect; strobe effect
Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
Can be operated in 9 CH mode
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone
With a beam angle of 17°
