Bar with 5 heads, separate TILT movement and RGBW colors

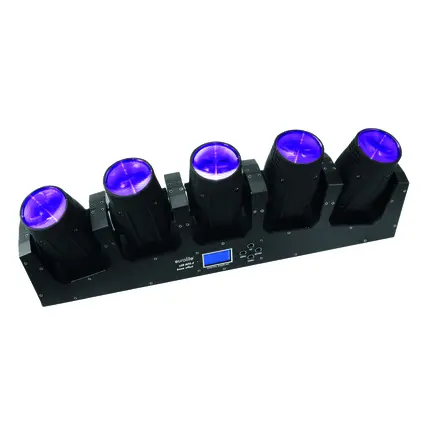

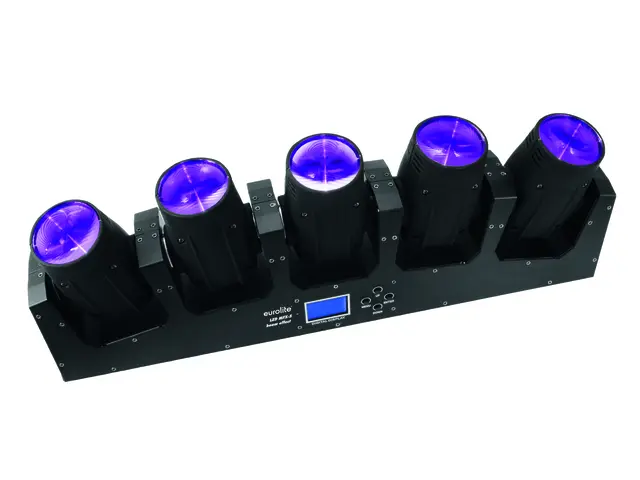

EUROLITE LED MFX-5 Beam Effect

Bar with 5 heads, separate TILT movement and RGBW colors-MainBild
download image
Detail images (23 overall)
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-1
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-3
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-4
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-5
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-6
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-7
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-8
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-9
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-10
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-11
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-12
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-13
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-14
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-15
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-16
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-17
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-18
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-19
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-20
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-21
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-22
Bar with 5 heads, separate TILT movement and RGBW colors-Bild-23
svg
svg
4°
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

Bar with 5 heads, separate TILT movement and RGBW colors

EUROLITE LED MFX-5 Beam Effect

The article is no longer in our assortment.
Item no. 50944305
Print product
Product badge
Here you find the manual and downloads for
EUROLITE LED MFX-5 Beam Effect
Features

Bar with 5 heads, separate TILT movement and RGBW colors

  • TILT movement for each LED head separately and steplessly adjustable
  • Equipped with five 10 W quadcolor LEDs in the colors red, green, blue and white
  • Individual control of each LED
  • Narrow beam angle
  • Positioning within 270° TILT
  • Stepless color blend, color change, preset colors, dimmer and strobe effect
  • Automatic position correction
  • Stand-alone, master/slave and DMX mode
  • Control panel with LC display for easy configuration
  • Power connection via P-Con jack and included power cable with safety plug
  • 5 powerful LEDs 10 W high-power 4in1 QCL RGBW
  • Multi beam effect
  • Control via DMX; stand-alone; sound to light via microphone
  • Preprogrammed in LED PC-Control 512; Light Captain; Light´J
  • Flicker-free
  • With a beam angle of 4°

Package contents

  • 1 x omega bracket
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
IP classification:IP20
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
Lamp type:LED lamp
LED type:5 x 10 W high-power 4in1 QCL RGBW
Max. TILT movement:270° positioning auto position correction (feedback)
Flash rate:0 - 15 Hz
DMX channels:16; 46; 50
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; stand-alone; sound to light via microphone
Preprogrammed in:LED PC-Control 512; Light Captain; Light´J
Projection:Flicker-free
Beam angle:4°
Beam angle (1/2 peak):4°
Housing color:Black
Dimensions:Width: 62 cm
Depth: 7,8 cm
Height: 23 cm
Weight:5,75 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263975820487,35 kg68cm x 17cm x 39cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
E6508956
Pcb (LED driver) LED MFX-5 (150MM-75MM)
E6508958
Lüfter 12V/0,30A 40x40x12mm
E6509056
Pcb (LED) MFX-5 (S3794)
More 2 spare parts
Downloads
Loading the documents. Please wait...
HERSTELLERINFO
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
SICHERHEITSHINWEIS
SICHERHEITSHINWEIS_LANG
