Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	80 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	8 x 8 W SMD 9080 4in1 QCL RGBW
Max. TILT movement:	360° exact positioning (16 bit resolution) plus infinity auto position correction (feedback)
Flash rate:	0 - 13 Hz
DMX channels:	45; 21; 12; 8
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; stand-alone; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	1°
Beam angle (1/2 peak):	1°
Housing color:	Black
Dimensions:	Length: 62.9 cm Depth: 10.6 cm Height: 18.1 cm
Weight:	6.10 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397595178	6,75 kg	70cm x 18cm x 27cm
4	4026397599718	29,00 kg	73cm x 38cm x 55cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
50900751-Support-108610-1.0000-50900751-LED-PC-Control-fixtures-de.zip (8 KB)	1.0000	de
50900751-Support-136702-Fixture-fuer-Colorchief-V2x-de.zip (215 B)	0.0000	de

All images

Name	Version	Language
50900751-Images-.zip

Video link

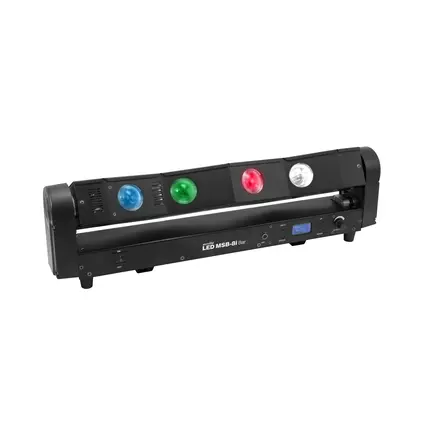

EUROLITE LED MSB-8i Bar

The article is no longer in our assortment.

No. 50900751

1°

Moving Bar with narrow beams and 4 lenses on the front and backside

Equipped with eight 8 W quadcolor LEDs with RGBW colors
With Infinity function for unlimited TILT movement
Positioning within 360° TILT
Automatic position correction
Exact positioning via 16-bit TILT movement resolution
Individual control of each LED
Narrow beam angle
Stepless color blend, color change, preset colors for each LED, dimmer and strobe effect
Stand-alone, master/slave and DMX mode
Control panel with LC display for easy configuration
Mains input and output for power linking up to 8 units
8 LEDs 8 W SMD 9080 4in1 QCL RGBW
Multi beam effect
Control via DMX; stand-alone; sound to light via microphone
Fixtures available for Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 1°
