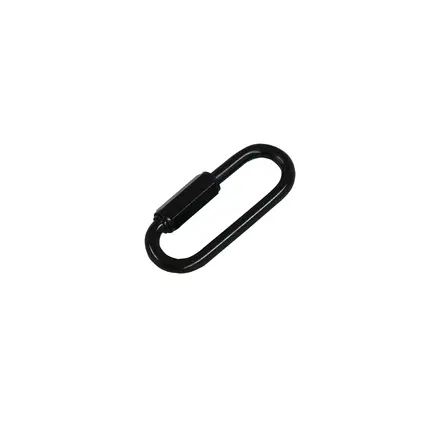

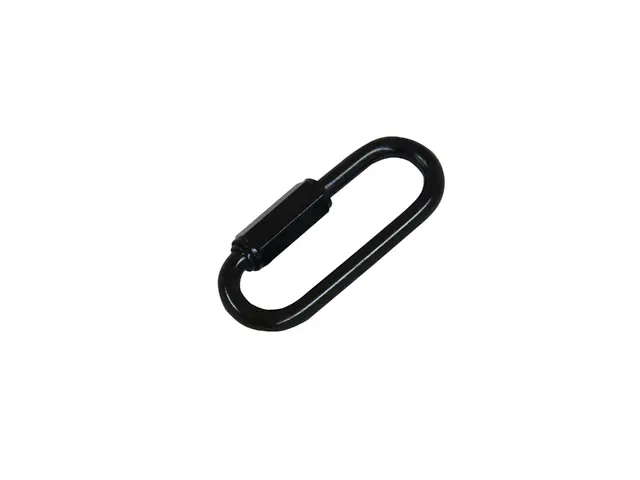

EUROLITE Quick Link Type B-140 black

EUROLITE

Official quick link

EUROLITE Quick Link Type B-140 black

available in approx. 7 wk(s)
2,90
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 5030165A

Features
  • Complies with DIN 56927:2009-03
  • Nominal size: 5 mm
  • Form B (long)
  • Galvanized
  • Identification number: 140
  • Stamp: DIN 56926 B 140
  • Test report according to DIN EN 10204 as download
Technical specifications
Maximum load WLL (5-fold):280 kg
Maximum load BGV C1 (10-fold):140 kg
Identification:DIN 56926-B-140
Temperature range:-40° C to +100° C
Diameter:5 mm
Form:B - large
Standard:DIN 56927:2009-03
Spanner opening:13 mm
Spanner opening:0-13 mm
Weight:0,023 kg
Packaging units
PU EAN Weight Dimensions
1 4026397495034 0,02 kg 6cm x 2,5cm x 5cm
100 4026397495041 2,69 kg 21,5cm x 10,5cm x 10,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00097659.pdf 25.00 de
00098401.pdf 25.00 en
00115333.pdf 27.00 de
00115770.pdf 27.00 en
Data sheet
Name Version Language
Test report00061017.pdf 1.00 de/en
All images
Name Version Language
5030165A.zip
