EUROLITE Quick Link Type B-550

EUROLITE

Official quick link

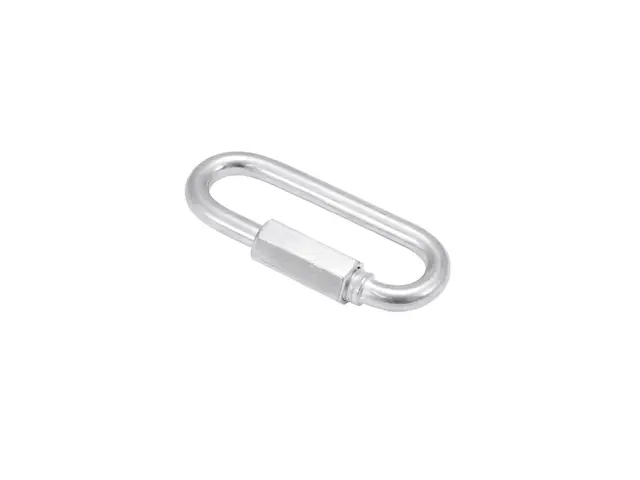

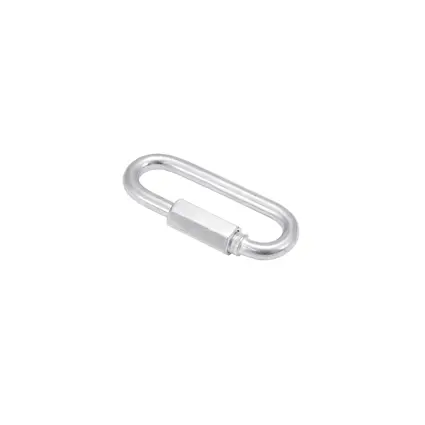

EUROLITE Quick Link Type B-550

Stock for approx. 12 wk(s)
6,90
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 50301636

Features
  • Complies with DIN 56927:2009-03
  • Nominal size: 10 mm
  • Form B (long)
  • Galvanized
  • Identification number: 550
  • Stamp: DIN 56926 B 550
  • Test report according to DIN EN 10204 as download
Technical specifications
Maximum load WLL (5-fold):1100 kg
Maximum load BGV C1 (10-fold):550 kg
Identification:DIN 56926-B-550
Temperature range:-40° C to +100° C
Diameter:10 mm
Form:B - large
Spanner opening:20.5 mm
Dimensions:110 x 44 mm
Maximum load WLL (5-fold):1100 kg
Spanner opening:0-20,5 mm
Weight:0,135 kg
Standard:DIN 56927:2009-03,
Packaging units
PU EAN Weight Dimensions
1 4026397495157 0,15 kg 10,5cm x 4,5cm x 1,5cm
100 4026397495164 15,30 kg 28cm x 18cm x 18cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00097659.pdf 25.00 de
00098401.pdf 25.00 en
00115333.pdf 27.00 de
00115770.pdf 27.00 en
Data sheet
Name Version Language
Test report00076829.pdf 1.00 de/en
All images
Name Version Language
50301636.zip
