Motor for mirror balls up to 30 cm with 1.5 RPM

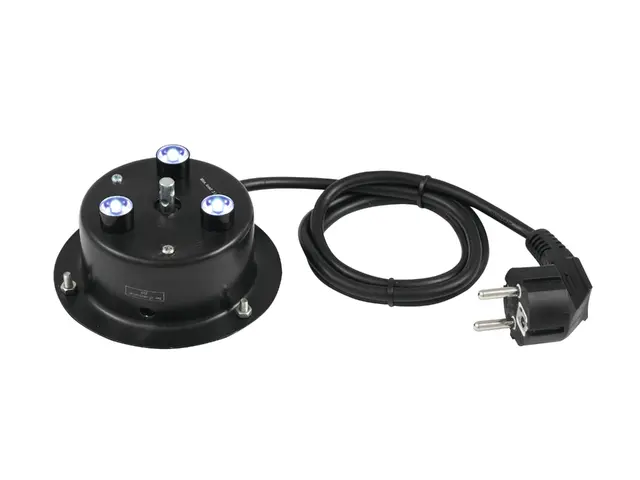

EUROLITE MD-1015 Rotary Motor 3x1W LEDs UV


Motor for mirror balls up to 30 cm with 1.5 RPM

EUROLITE MD-1015 Rotary Motor 3x1W LEDs UV

Stock for approx. 12 wk(s)
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 50301096

  • Metal housing with 3 UV LEDs which illuminate the mirrorball from above
  • Suitable for driving mirror balls up to a maximum weight of 3 kg
  • This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
  • The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
  • 1,5 rotations per minute
  • Ready for connection with power plug
  • For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
  • The motor always has to be installed with a secondary safety attachment
  • Before taking into operation for the first time, the installation has to be approved by an expert
Technical specifications
Power supply:230 V AC, 50 Hz
Maximum load:3 kg
Max. diameter of mirror ball:30 cm
Rotation-speed:approx. 1.5 RPM
LED number:3 x 1 W, UV
Diameter of base plate:110 mm
Height:55 mm
Weight:0,4 kg
Power consumption:10 W
Maximum carrying capacity:3 kg
Packaging units
PU EAN Weight Dimensions
1 4026397549317 0,44 kg 12cm x 13cm x 7cm
50 4026397549324 22,65 kg 61cm x 36cm x 32cm
