Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	8 W
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Cable length:	Approx. 1 m
Lamp type:	LED lamp
LED type:	3 x 1 W blue (B)
Speed:	1.5 RPM
Maximum load:	3 kg
Max. mirror ball diameter:	30 cm (EUROLITE)
Dimensions:	Height: 5.5 cm Diameter: Ø 11 cm
Weight:	0.41 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397543131	0,44 kg	12cm x 13cm x 7cm
50	4026397543148	22,65 kg	61cm x 36cm x 32cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Video file

Name	Version	Language
50301094-Video-91299-de_en_es_fr.flv (10 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
50301094-Images-.zip

Video link

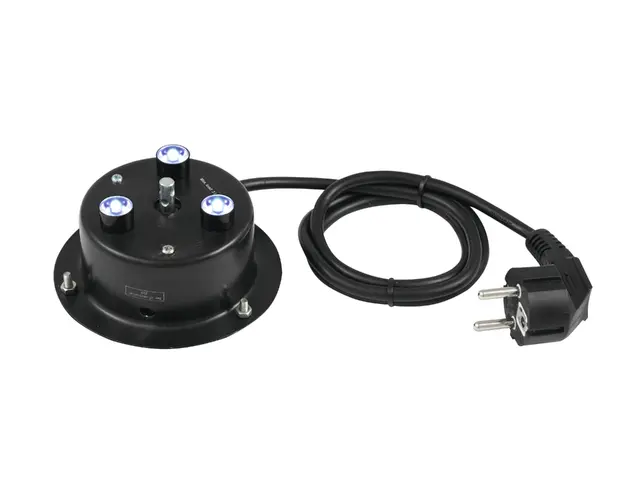

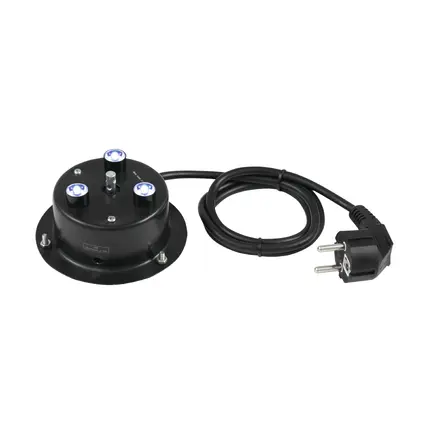

EUROLITE MD-1015 Rotary Motor 3x1W LEDs blue

The article is no longer in our assortment.

Check out the alternatives:

No. 50301094

11 cm

Motor for mirror balls up to 30 cm with 1.5 RPM

Metal housing with 3 blue LEDs which illuminate the mirrorball from above
Suitable for driving mirror balls up to a maximum weight of 3 kg
This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
1,5 rotations per minute
Ready for connection with power plug
For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
3 LEDs 1 W blue (B)
Suitable for a mirror ball with a diameter of up to 30 cm
