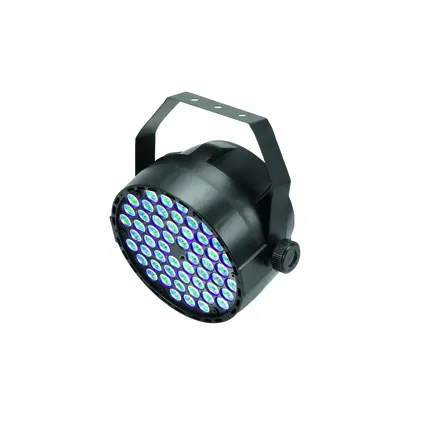

Spotlight with 54 x 3 W LED in RGB and DMX control
EUROLITE LED Big PARty TCL Spot

Spotlight with 54 x 3 W LED in RGB and DMX control-MainBild

12°

Spotlight with 54 x 3 W LED in RGB and DMX control

EUROLITE LED Big PARty TCL Spot

The article is no longer in our assortment.

Check out the alternatives:

EUROLITE LED SLS-6 TCL Spot

interesting alternative, take a look!

Stock for approx. 8 wk(s)

59,90 €

No. 42110196

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED Big PARty TCL Spot

Big performer

Great effects for great parties: This LED spot by Eurolite is equipped with a total of 54(!) LEDs creating amazing light effects.

Powerful RGB LEDs

High-performance LEDs in the colors red, green and blue illuminate the room in any color combination of your choice. By choosing the stand-alone mode, you let the Big PARty TCL run the show itself by adjusting the colors and fade speed to the rhythm of the music through the built-in microphone. Alternatively, you can use a DMX controller to control the spot manually.

Flexible

Thanks to the mounting bracket, you can mount the Big PARty almost everywhere. The installation is so easy that even beginners can do it. Impress your audience with a vibrant color mixture, dimmer and strobe effects or static colors. This spot is perfectly suited for every occasion!

Features

Spotlight with 54 x 3 W LED in RGB and DMX control

Equipped with 54 bright 3 W RGB LEDs (3in1)
Auto, music, master/slave and DMX mode
Built-in color change programs, strobe effect, pulse effect and dimmer
Direct selection for 18 static preset color combinations
Manual setting of mixed colors
Addressing via control panel with 4-digit LED display
Sound-control via built-in microphone
Ideal for party rooms and household use
Locking possibility at the bracket
Ready for connection via power cord with Euro plug
Switch-mode power supply for operation between 100 and 240 volts
54 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
Strobe effect
Control via stand-alone; DMX; sound to light via microphone
Preprogrammed in LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 12°

Package contents

1 x spotlight, 1 x user manual

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
IP classification:	IP20
Power connection:	Fixed power supply cord with Euro plug
Lamp type:	LED lamp
LED type:	54 x 3 W high-power 3in1 TCL RGB (homogenous color mix)
DMX channels:	5
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone
Preprogrammed in:	LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	12°
Beam angle (1/2 peak):	12°
Beam angle (1/10 peak):	26°
Housing color:	Black
Dimensions:	Width: 15 cm Depth: 25,5 cm Height: 24,5 cm
Weight:	1,08 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397593822	1,30 kg	21cm x 21cm x 17,1cm
12	4026397593839	17,05 kg	68cm x 44cm x 37cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

LED TCL 3W Pin=B-R-G TMH-7 (JX-SPEC-GRB-003)

Fan 24V/0,12A 80x80x15mm (C8015H24BPLP2-7)

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
