DMX LED spotlight set with RGB LEDs for mobile use
EUROLITE LED KLS-406 Compact light set

mpn42109790-eurolite-led-kls-406-compact-light-set-MainBild
download image
Detail images (5 overall)
mpn42109790-eurolite-led-kls-406-compact-light-set-Bild-1
mpn42109790-eurolite-led-kls-406-compact-light-set-Bild-3
mpn42109790-eurolite-led-kls-406-compact-light-set-Bild-4
mpn42109790-eurolite-led-kls-406-compact-light-set-Bild-5
EUROLITE

DMX LED spotlight set with RGB LEDs for mobile use

EUROLITE LED KLS-406 Compact light set

The article is no longer in our assortment.
Item no. 42109790
Print product
Product badge
Here you find the manual and downloads for
EUROLITE LED KLS-406 Compact light set
Features

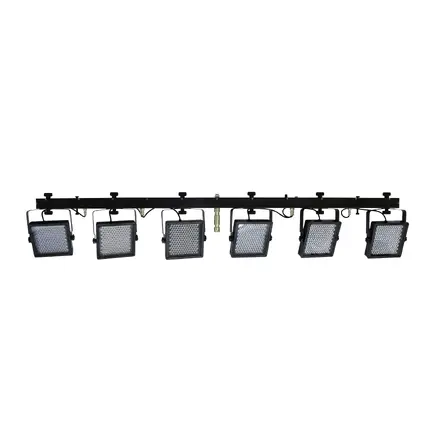

DMX LED spotlight set with RGB LEDs for mobile use

  • Complete LED light set with six slimline LED spots
  • Cossbar with integrated DMX control unit
  • Installation via TV pin for tripods with 28 mm interior diameter
  • Ultra-light ideally suited for mobile use
  • Practical flightcase optional
  • 180 x 10 mm LED per spot (60 x red, 60 x green, 60 x blue)
  • Movable and tiltable spotlights
  • DMX-controlled operation or stand-alone operation with processor-controlled color change
  • Master/Slave operation
  • Sound-control via built-in microphone with sensitivity control
  • Convenient control possible via optional 4-pedal foot pedal FP-1 (preset, sound control, freeze, blackout)
  • DMX512 control via regular DMX controller (occupies 21 channels)
  • Via DMX, each spot can be individually controlled
  • DMX functions: dimmer, automatic mode, music control, strobe effect
  • Addressing and setting via control panel with 4-digit LED display
  • Suited for installation on a lighting stand (not included) or truss
  • Spots in black plastic housing
  • Ideal for bands, stages or solo entertainers
  • Ready for connection with power cord and safety plug
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:70,00 W
Dimensions:Width: 1,2 m
Depth: 5,5 cm
Height: 31 cm
Weight:11,05 kg
DMX connection:3-pin XLR
DMX channels:21
Sound-control:via built-in microphone
LED type:10 mm
Number of LEDs:1080 (360 x red, 360 x green, 360 x blue)
Beam angle:25°
TV spigot:D = 28 mm
Dimensions (L x W x H):1870 x 55 x 295 mm
Legal specifications
Ecodesign regulation:yes
Special product:Not designed for household room illumination
intended use:show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397379464 13,20 kg 192cm x 12cm x 39cm
