Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	750 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	Halogen lamp
DMX channels:	1; 2; 5; 10
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX
Housing color:	Black
Dimensions:	Width: 105 cm Depth: 12 cm Height: 15.5 cm
Weight:	5.95 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397423839	6,65 kg	106,5cm x 14cm x 20cm
2	4026397423846	14,30 kg	108cm x 28,5cm x 21,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
42103810-Images-.zip

EUROLITE STP-10 MK2 for 10x GU-10 DMX Bar

The article is no longer in our assortment.

Check out the alternatives:

No. 42103810

Extremely bright floodlight with DMX control

1, 2, 5 or 10 DMX channels selectable for numerous applications
DMX-controlled operation or stand-alone operation
DMX control via any standard DMX controller

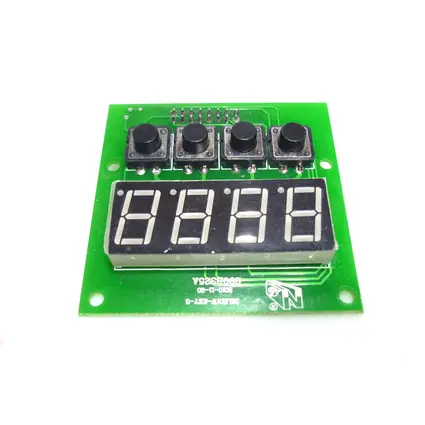

Addressing and setting via control panel with 4-digit LED screen and four operating buttons
For use on stages, catwalks, crossbeam systems, or decoration
For 10 x GU-10 230V/75W lamp
Control 10 lamps together or singly via DMX 10 channels
16 internal programs, Auto mode, all lamps full on
Speed of internal programs and dimmer intensity programmable
Lamp pre-heat for long lamp life
Memory function
Extreme and lightning-fast light displays
Elegant slim housing
Floor, ceiling or trussing installation possible
Feed-through output allows to power another device
After every 8 bars the fixtures must have a renewed connection with the power mains
Ready for connection via powercon
Control via stand-alone; DMX
