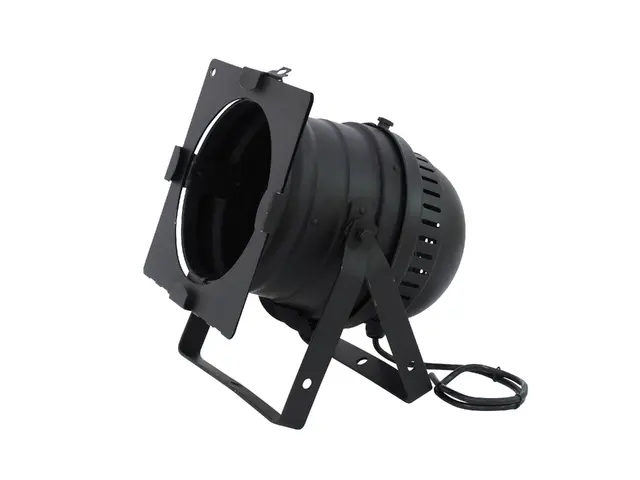

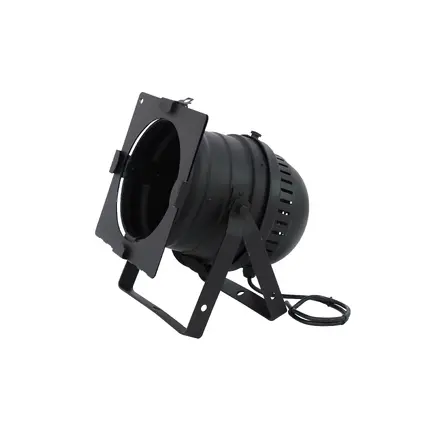

Short PAR-64 housing (double bracket) with open cable ends
EUROLITE PAR-64 Spot Floor with cable bk

svg
EUROLITE

Short PAR-64 housing (double bracket) with open cable ends

EUROLITE PAR-64 Spot Floor with cable bk

Features

Short PAR-64 housing (double bracket) with open cable ends

  • Rugged aluminum housing
  • Strong aluminum mounting bracket with hole for fixing the obligatory safety rope
  • Heat-resistant fixing screw for "bombproof" fixing
  • The screw is protected against turning it too far out
  • 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
  • Safety grille (splinter protection) is integrated in the tube
  • Internally blackened tube for precise light output
  • Strong brass clamps with extension spring for safe hold and for quick opening of the rear housing cover
  • Protection grille on the rear housing cover - complies with CE-regulations
  • Comes fully-wired with black silicone cable, stable earthing in the housing and directly clamped ceramic socket
  • Delivered with color filter frame
  • With strong cable tension relief
  • Well-suited for easy installation of our Raylight reflectors with matching connector (GX16)
  • Simple mounting: connect with ceramic socket - ready!
  • Power plug has to be ordered separately
  • For PAR 64

Package contents

  • 1 x spotlight, 1 x filter frame, 1 x lamp clamping ring, 1 x user manual
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:1000 W
IP classification:IP20
Protection class:Protection class I
Power connection:Fixed supply cord with open wires
Lamp type:Selectable
Color generation:Via color filter frame (optional)
Housing color:Black
Dimensions:Width: 27 cm
Depth: 34 cm
Height: 27 cm
Weight:1,60 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263971318951,85 kg34cm x 23cm x 23cm
6402639713190112,60 kg71cm x 47cm x 37cm
