LED gobo projector with 20 W LED, QuickDMX, strobe, dimmer and gobo rotation

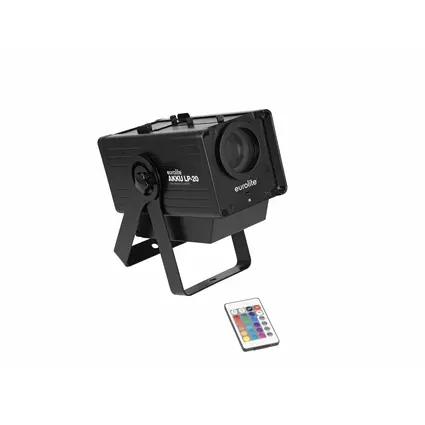

EUROLITE AKKU LP-20 Gobo Projector QuickDMX

svg
svg
11 - 16°
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

LED gobo projector with 20 W LED, QuickDMX, strobe, dimmer and gobo rotation

EUROLITE AKKU LP-20 Gobo Projector QuickDMX

Stock for approx. 12 wk(s)
399,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 41700650

Features

LED gobo projector with 20 W LED, QuickDMX, strobe, dimmer and gobo rotation

  • Ideal as a logo projector, both for mobile and stationary use
  • Cordless, flexible and versatile
  • With one high-power cold white 20 W COB LED
  • Suitable for metal gobos with an outside/image diameter of 27/18 mm
  • Delivery includes a gobo, motive "Bubbles"
  • Static or gobo rotation selectable, rotation speed and direction can be adjusted
  • Clear projection
  • Easy insertion and changing of the gobo
  • Manual focus
  • Manual zoom
  • Dimmer, preprogrammed macros, strobe effect with variable speed and random strobe effect
  • With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
  • Stand-alone and DMX mode
  • 2, 3 or 4 DMX channels selectable
  • Massive, rechargeable lithium-ion battery for a long operating time of up to 9 hours
  • Integrated automatic charging of the battery with indicator
  • Addressing and setting via Control Board with touch buttons and LCD
  • Convenient wireless control via included IR remote control EUROLITE IR-13
  • Ideal as floor spot via additional bracket
  • Locking possibility at the brackets
  • Kensington security slot for anti-theft protection
  • Switch-mode power supply for operation between 100 and 240 volts
  • Power connection via P-Con jack and included power cable with safety plug
  • Control: DMX; QuickDMX built-in; IR remote control
  • Projection: flicker-free
  • Effect: Gobo effect
  • Theft protection: kensington lock

Remote control

  • Battery: Button cell 3.0 V CR2032 lithium manganese built-in
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
IP classification:IP20
Power connection:Mains input P-Con (blue), mounting version via Power supply cord with safety plug (provided)
Battery/battery pack
Battery pack type:1 x Lithium ion 25,9 V, 7800 mAh, 202,02 Wh
Accumulator:battery operation up to 9h depending on program used
recharging time 4h
LED:1 x COB (chip-on-board) 20 W CW (homogenous color mix)
Equipment:rotating gobo wheel
Gobos:outside diameter 27mm
image diameter 18mm
DMX channels:2; 3; 4
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling fan:No, cooling by convection
Control:DMX
QuickDMX built-in
IR remote control
Beam angle:11 - 16°
Case color:Black
Carrier frequency:2,4 GHz
Theft protection:kensington lock
Width:19,3 cm
Height:28,7 cm
Depth:25,6 cm
Weight:4,70 kg
Remote control
Battery:Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397655537 5,12 kg 31cm x 22cm x 31cm
4 4026397655629 21,55 kg 64cm x 46cm x 36cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
41700650-Manual-121129-1.000-de_en.pdf (3 MB) 1.000 de_en
All images
Name Version Language
41700650-Images.zip
Publications
main catalog 2019 St. E #28
On page: 128
Size: 284 MB
