Technical specifications

Power supply:	100-240 V AC, 50/60 Hz 12.6V DC 2500 mA
Power connection:	Battery/battery pack Mains input via coaxial power connector (M) mounting version power supply cord with Euro plug (provided)
Lamp type:	LED lamp
LED type:	1 x 15 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
DMX channels:	3; 4; 6; 8; 10
Cooling:	Passive convection cooling
Control:	Master/slave function; stand-alone; QuickDMX; IR remote control
Fixtures available for:	LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Projection:	Flicker-free
Carrier frequency:	2.4 GHz
Beam angle:	8°
Beam angle (1/2 peak):	8°
Housing color:	Black
Dimensions:	Width: 16.8 cm Depth: 13.8 cm Height: 6.2 cm
Weight:	1.67 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
Device
Battery pack type:	1 x lithium ion 11.1 V, 2600 mAh, 28.86 Wh
Battery pack:	Battery operation up to 18h depending on program used Recharging time 4h
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397601374	1,90 kg	26,5cm x 20cm x 11cm
8	4026397602227	16,20 kg	56cm x 43cm x 26cm

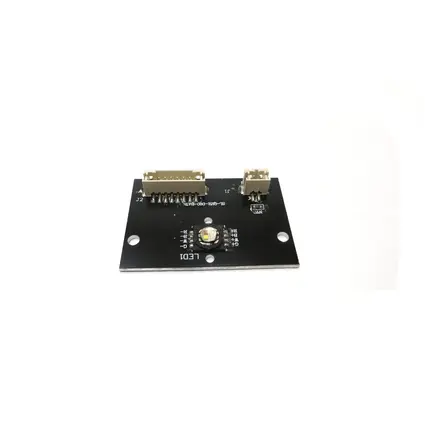

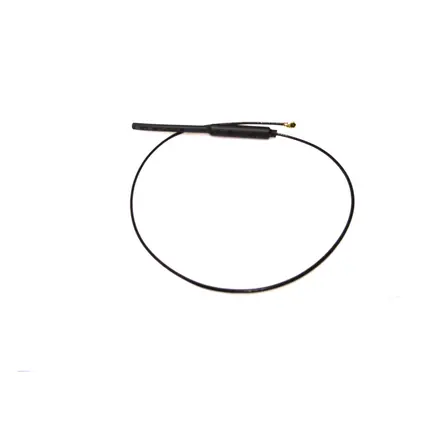

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41700011-Support-123448-1.1000-41700011-LED-PC-Control-Fixtures-de.zip (5 KB)	1.1000	de
41700011-Support-136447-Fixture-fuer-Colorchief-V2x-de.zip (223 B)	0.0000	de

Press report

Name	Version	Language
41700011-Press-110577-EuroliteAkkuFlatLightSC0917-de_en_es_fr.pdf (929 KB)	0.0000	de_en_es_fr

All images

Name	Version	Language
41700011-Images-.zip

Video link

EUROLITE AKKU Flat Light 1 bl

The article is no longer in our assortment.

Check out the alternatives:

No. 41700011

8°

Flat spotlight with 15 W RGBW LED, QuickDMX transceiver and bracket

With QuickDMX transceiver - cordless, flexible and versatile
Equipped with a 15 W QCL LED in red, green, blue and white
Cordless and versatile
Elegant housing for indoor use
With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
Operation via built-in rechargeable lithium-ion battery with up to 18 hours operating time
Integrated automatic charging of the battery with indicator
Stepless color blend, color change, preset colors, dimmer and strobe effect
Dimmer speed (step response) adjustable
Addressing and setting via Control Board with touch buttons and LCD
Inclination angle manually adjustable via the bracket
Charger included in delivery
1 LED 15 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Strobe effect
The device is cooled by passive convection cooling
Control via master/slave function; stand-alone; QuickDMX; IR remote control
Fixtures available for LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Flicker-free
With a beam angle of 8°
For application areas such as: Wedding/gala/events; small rental
Silent operation
