Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
Power connection:	Fixed power supply cord with safety plug
Lamp type:	LED lamp
LED type:	1 x 25 W COB (chip-on-board) 3in1 R/G/B (homogenous color mix)
DMX channels:	3; 5
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
Projection:	Flicker-free
Beam angle (1/2 peak):	With fresnell 20° 60°
Beam angle (1/10 peak):	With fresnell 28° 101°
Housing color:	Black
Dimensions:	Width: 22 cm Depth: 17 cm Height: 24.5 cm
Weight:	1.88 kg
Noise classification:	Class 2 (slight noise)
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397533941	2,10 kg	21,5cm x 21,5cm x 31cm
4	4026397533958	9,50 kg	45cm x 45cm x 33cm

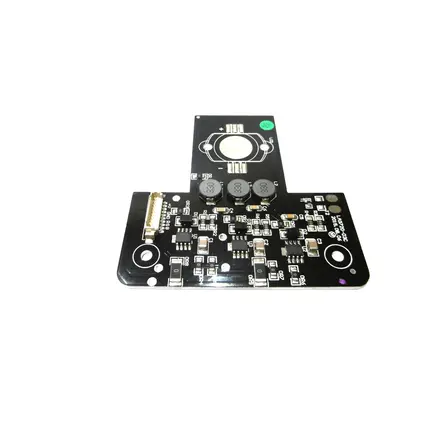

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41607215-Support-105645-1.0000-41607215-LED-PC-Control-fixtures-de.zip (1 KB)	1.0000	de
41607215-Support-136429-Fixture-fuer-Colorchief-V2x-de.zip (223 B)	0.0000	de

All images

Name	Version	Language
41607215-Images-.zip

Video link

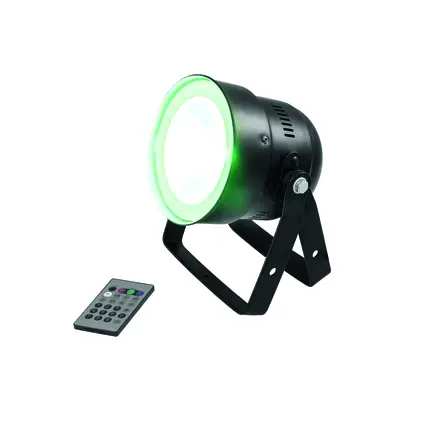

EUROLITE LED PAR-56 COB RGB 25W bk

The article is no longer in our assortment.

Check out the alternatives:

No. 41607215

20° with fresnell

60°

PAR spot with 25 W COB LED (RGB) & adjustable beam angle (60°/20°)

Equipped with one powerful 25 W COB LED with RGB colors
Functions: stepless RGB color mixture, solid colors, built-in programs, dimmer, strobe effect, Master/Slave operation
Dimmer speed (step response) adjustable
Operable in stand-alone mode, via DMX interface or via IR remote control
Controllable via IR remote control; included in the delivery
Adjustable microphone sensitivity via Control Board
Different beam angles (from approx. 60° to approx. 20°) possible via included lens
Easy installation
Ideal as floor spot via additional bracket
Locking possibility at the brackets
Comfortable addressing and setting via Control Board with LED display and three operating buttons
Ready for connection via power cord with safety plug
Switch-mode power supply for operation between 100 and 240 Volts
Available in silver or black
1 LED 25 W COB (chip-on-board) 3in1 R/G/B (homogenous color mix)
Strobe effect
Control via stand-alone; DMX; sound to light via microphone
Flicker-free
With a beam angle of 20°
