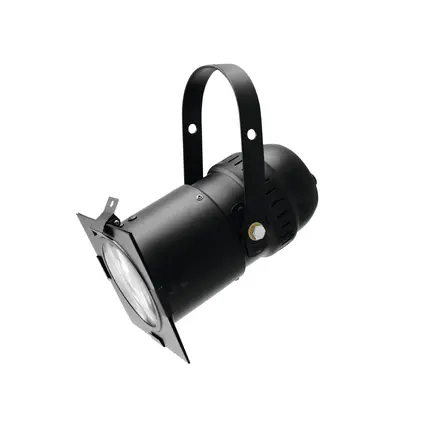

PAR Spot with 30 W COB LED (RGB) & adjustable beam angle (15°/28°)
EUROLITE LED PAR-30 COB RGB 30W bk

EUROLITE

PAR Spot with 30 W COB LED (RGB) & adjustable beam angle (15°/28°)

EUROLITE LED PAR-30 COB RGB 30W bk

Stock for approx. 4 wk(s)
-
119,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 41607200

Features
  • Equipped with one powerful RGB 30 W COB LED
  • Functions: static colors, RGB color mixture, internal programs, dimmer and strobe settings via DMX, Master/Slave operation
  • Operable in stand-alone mode or via DMX
  • 3 or 5 DMX channels selectable
  • Beam angle 15° with fresnel lens - 28° without
  • Comfortable addressing and setting via Control Board with LED display and three operating buttons
  • Sound-control via built-in microphone
  • Adjustable microphone sensitivity via Control Board
  • With color filter frame and Fresnel lens
  • Easy installation
  • Locking possibility at the mounting bracket
  • Ready for connection via power cord with safety plug
  • DMX512 control possible via any commercial DMX controller
  • Delivery includes lens
  • Available in silver or in black
  • Color generation: RGB
Technical specifications
Power supply:230 V AC, 50 Hz
DMX channels:3/5
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:Array 30 W, RGB
LED number:1
Beam angle:15° (with Fresnel lens)
Dimensions (L x W x H):215 x 155 x 210 mm
Weight:1.3 kg
Power consumption:30 W
Color:Black
IP classification:IP20
Lamp type:LED lamp
Beam angle:15 °
Beam angle:28 °
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397460476 1,73 kg 19,5cm x 20cm x 34cm
4 4026397460483 7,80 kg 41,5cm x 42cm x 36,5cm
