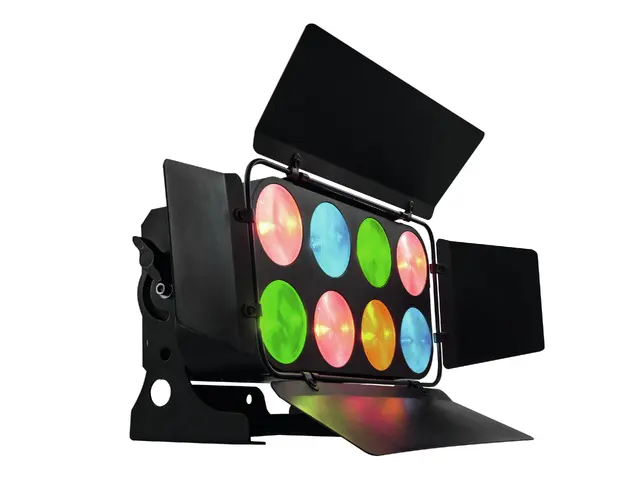

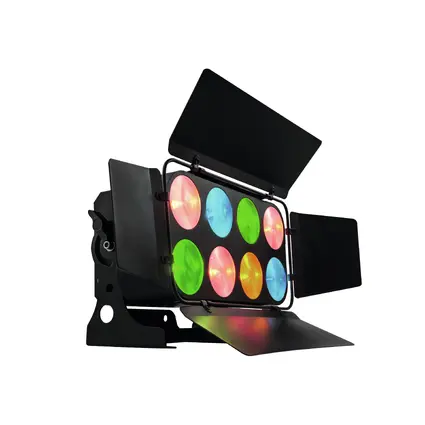

COB Performance Cluster with 25° beam angle


COB Performance Cluster with 25° beam angle


Stock for approx. 12 wk(s)
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 41606450

  • Operable in stand-alone mode via control panel with LCD screen or in DMX mode via any commercial DMX controller (occupies max. 33 channels)
  • 3, 4, 5, 6, 12, 24, 28 or 33 DMX channels selectable for various applications
  • Supports RDM (Remote Device Management)
  • Equipped with 8 x 30 W COB LEDs in the colors red, green and blue
  • Each LED can be controlled individually
  • Functions:Static colors, RGB color mixture, automatic color change, internal programs, dimmer and strobe settings via DMX, Master/Slave
  • Dimmer speed (step response) controllable
  • Adjustable white balance
  • Sound-control via built-in microphone; sensitivity adjustable via control panel
  • Comfortable addressing and setting via control panel with LC display and four operating buttons
  • Ideal as floor spot via base for standing installation
  • Locking possibility at the mounting bracket
  • With barn doors
  • Feed-through output allows to power up to 8 devices
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable with safety plug
  • Case color: Black
  • Effect: Strobe effect
  • Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
  • Power out: 1 x Powercon (Power out) gray, mounting version
  • Control: Stand-alone; DMX
  • LED: 8 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:3/4/5/6/12/24/28/33
DMX connection:5-pin and 3-pin XLR
Flash-rate:18 Hz
Sound-control:via built-in microphone
LED number:8
LED type:Array Cluster 30 W, RGB
Beam angle:25°
Dimensions (W x D x H):358 x 174 x 223 mm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Beam angle:25°
Power consumption:220,00 W
Lamp type:LED lamp
Weight:6,5 kg
IP classification:IP20
Height:22,3 cm
Depth:17,4 cm
Width:35,8 cm
Power connection:Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels:3; 4; 5; 6; 12; 24; 28; 33
LED:8 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
Power supply:110-240 V AC, 50/60 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397507805 7,60 kg 40,5cm x 24cm x 29cm
2 4026397507812 15,55 kg 50cm x 42,5cm x 32,5cm
