Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	120 W
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray)
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) warm white (WW)
Equipment:	Zoom manual
DMX channels:	1; 3
Cooling:	Temperature-controlled fan
Control:	DMX
Fixtures available for:	LED PC-Control 512; Light´J; Light Captain
Projection:	Flicker-free
Beam angle:	10° - 60°
Beam angle (1/2 peak):	10 - 50°
Beam angle (1/10 peak):	12 - 60°
Color temperature:	3200K
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Dimensions:	Length: 37 cm Width: 33.5 cm Height: 26.5 cm
Weight:	6.30 kg
Noise classification:	Class 2 (slight noise)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397473674	7,10 kg	50cm x 32cm x 32cm
2	4026397473681	15,35 kg	65,5cm x 52,5cm x 35cm

Spare parts

Fan 24V/0,12A 50x50x12mm

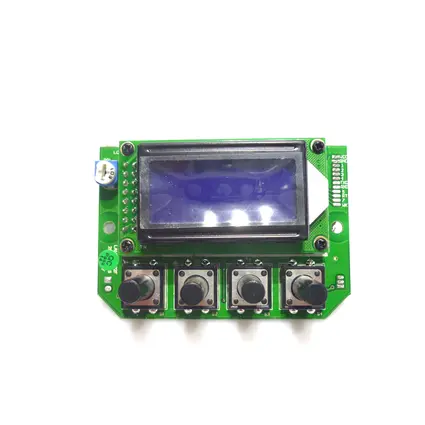

PCB (Display) THA-50F (LA1115-02C)

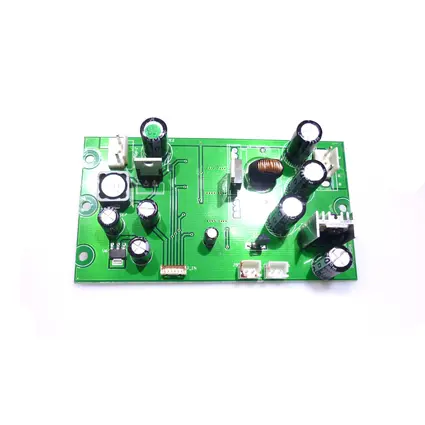

Pcb (Power supply) 18V/4A (KPSH72-18)

LED COB 100W 3200k Audience Blinder (TX-S100C180-005BH95-3)

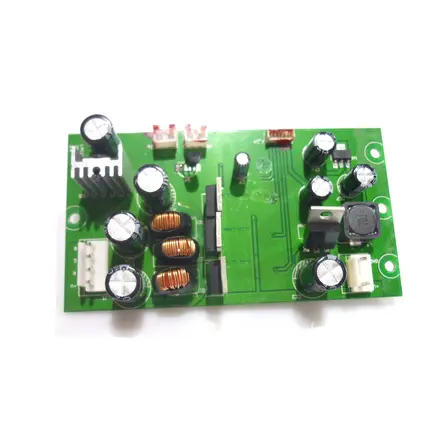

Pcb (Control) THA-100F (LA1119A-01C)

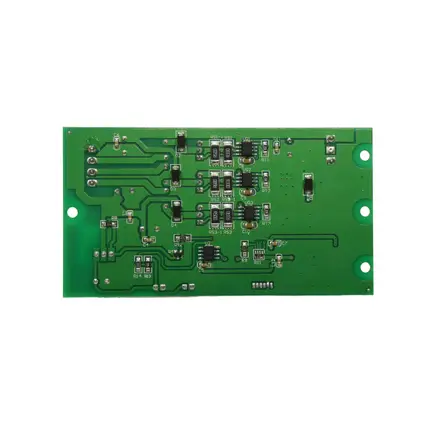

Pcb (DMX) (LADMX-01)

Socket XLR 3-Pol straight 4-pins

Panel plug XLR (Socket) straight pins

Pcb (control/display) LED THA-100F (LA1119A-02F)

Pcb (Control) THA-100F (LA1119A-01A)

Transistor IRFZ 44N 55V/41A TO-220AB

Voltage regulator LM2575

Cover THA-50F (front) black

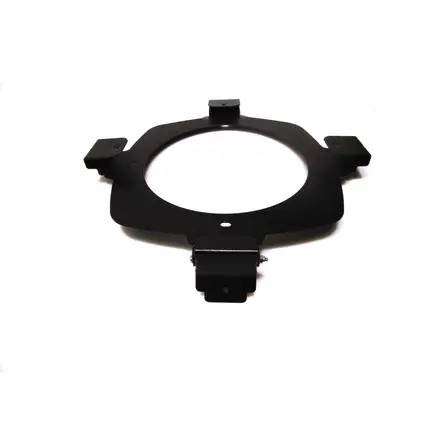

Cover (Filter frame holder) THA-50F

Pcb (Heat Sensor) 1kOhm NTC

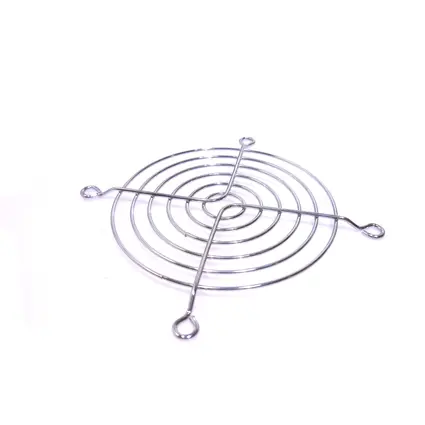

Fan cover 90x90mm LED THA-100F Theater-Spot

knob (zoom) THA-100F black

EUROLITE lense (fresnell) Ø150mm Theatre 650/1000

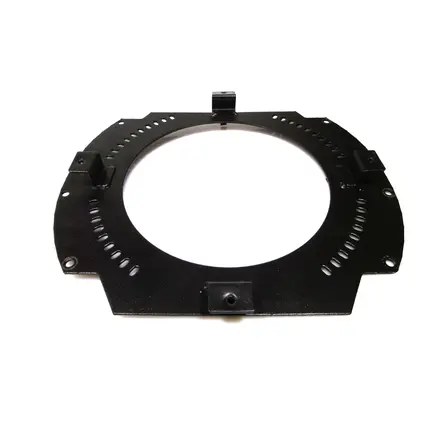

Front plate THA-50F Ø145MM

Locking screw M8x27 Knurled handle large

temperature sensor DS18B20

Transistor TIP 122

Transistor SS8050 NPN TO-92

Pcb (Control) THA-50F (LA1119A-01A)

Cover THA-50F (Edge protector) bl

Capacitor 470µF 35V

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41602125-Support-105579-1.0000-41602125-LED-PC-Control-fixtures-de.zip (1 KB)	1.0000	de
41602125-Support-136641-Fixture-fuer-Colorchief-V2X-de.zip (218 B)	0.0000	de

All images

Name	Version	Language
41602125-Images-.zip

EUROLITE LED THA-100F Theatre-Spot

Fresnel spotlight (fresnel lens), 100-W-COB (chip-on-board)-LED warm white (WW), extremely quiet, DMX-MainBild

Fresnel spotlight (fresnel lens), 100-W-COB (chip-on-board)-LED warm white (WW), extremely quiet, DMX-Bild-1

EUROLITE LED THA-100F Theatre-Spot

The article is no longer in our assortment.

No. 41602125

10 - 60°°

Fresnel spotlight (fresnel lens), 100-W-COB (chip-on-board)-LED warm white (WW), extremely quiet, DMX

Light impression of a conventional 750 W lamp
1 LED 100 W COB (chip-on-board) warm white (WW)
Zoom manual
Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable
Strobe effect
Can be operated in 1; 3 CH mode
The device is cooled by temperature-controlled fan
Control via DMX
Flicker-free
With a beam angle of 10° - 60°
With mounting bracket
LCD display
Mains input and output for power linking up to 8 units
